Description

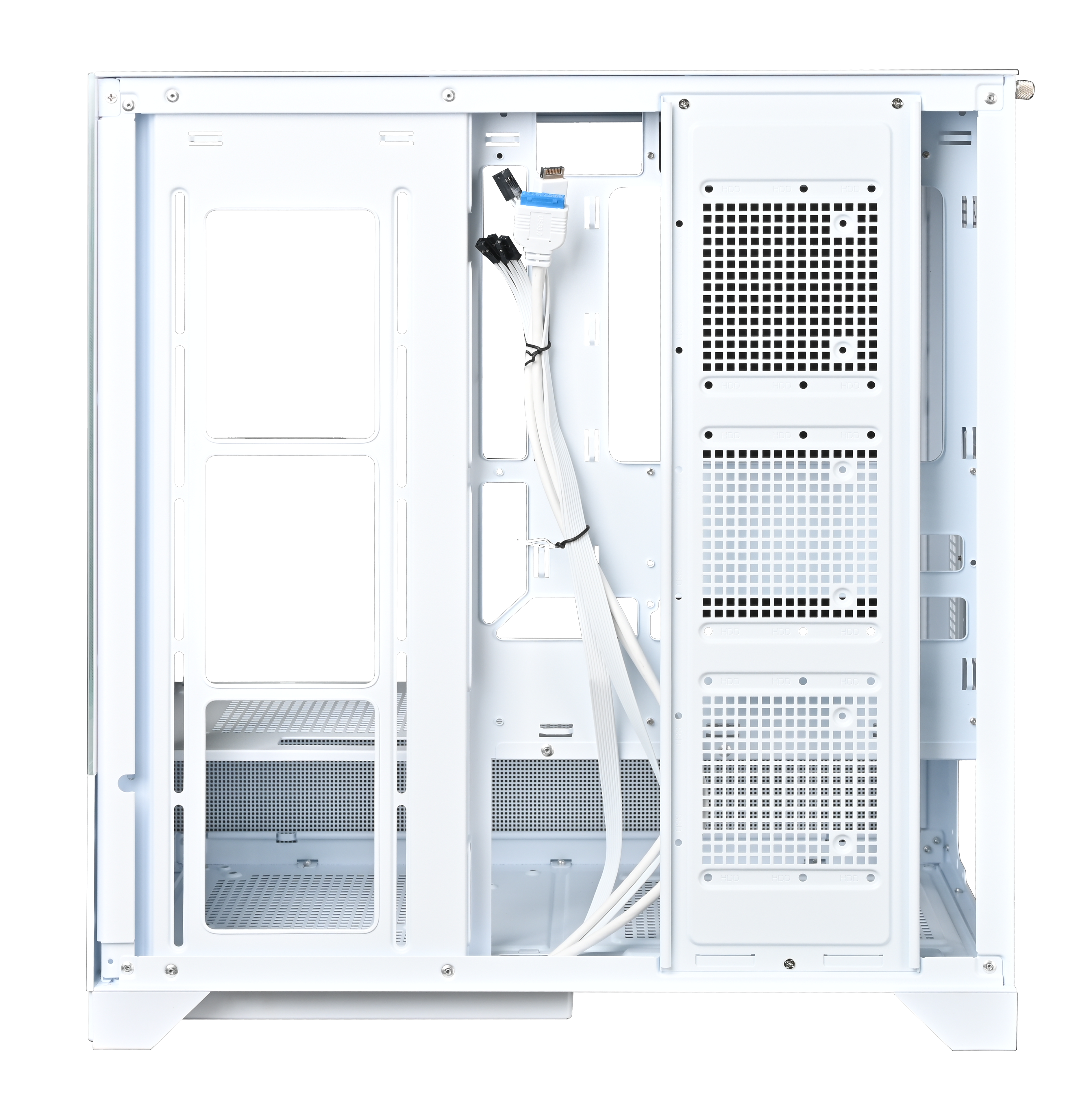

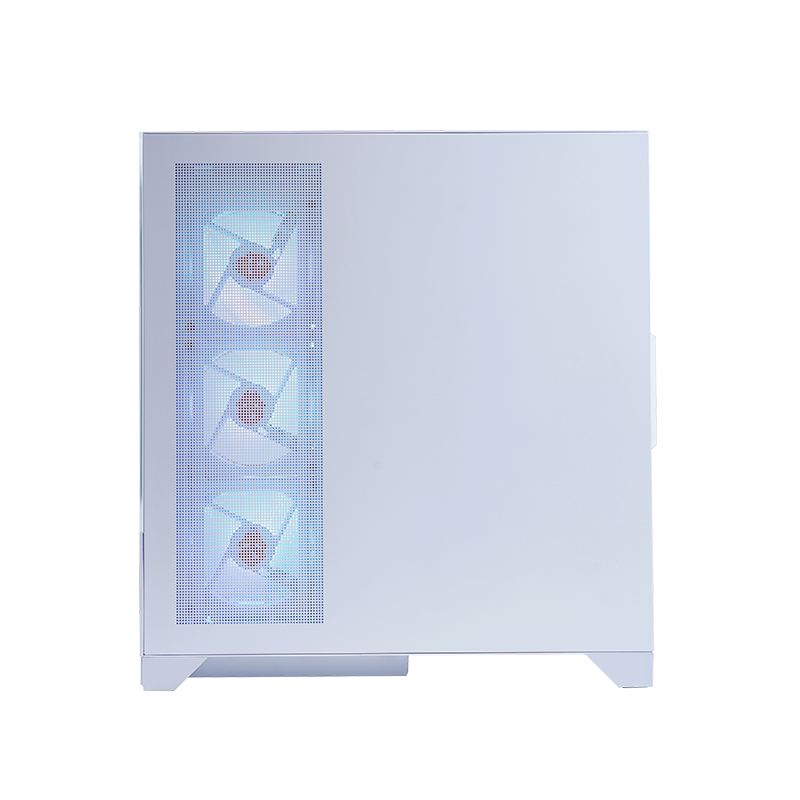

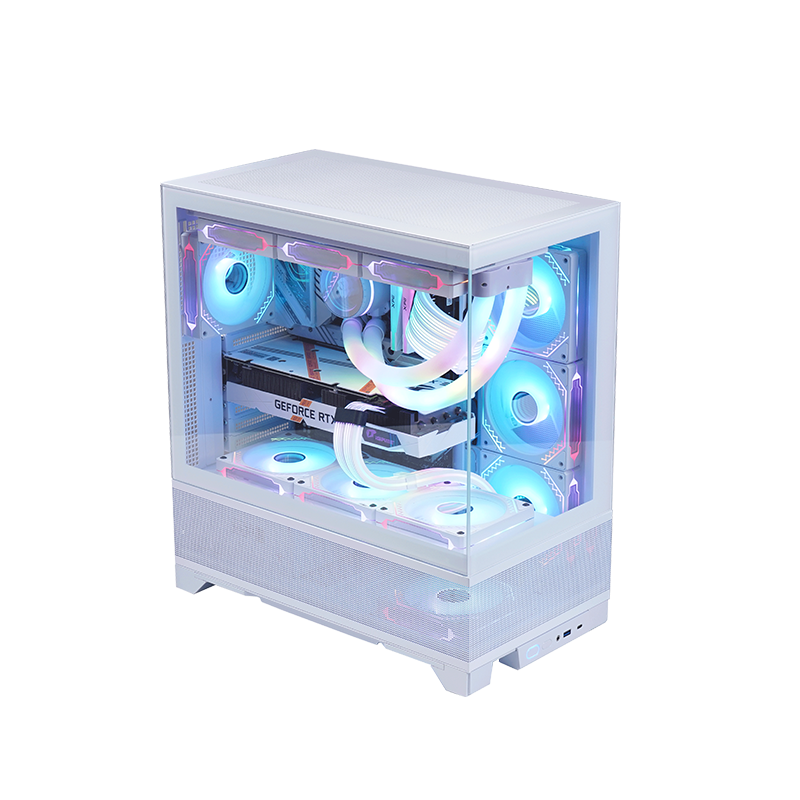

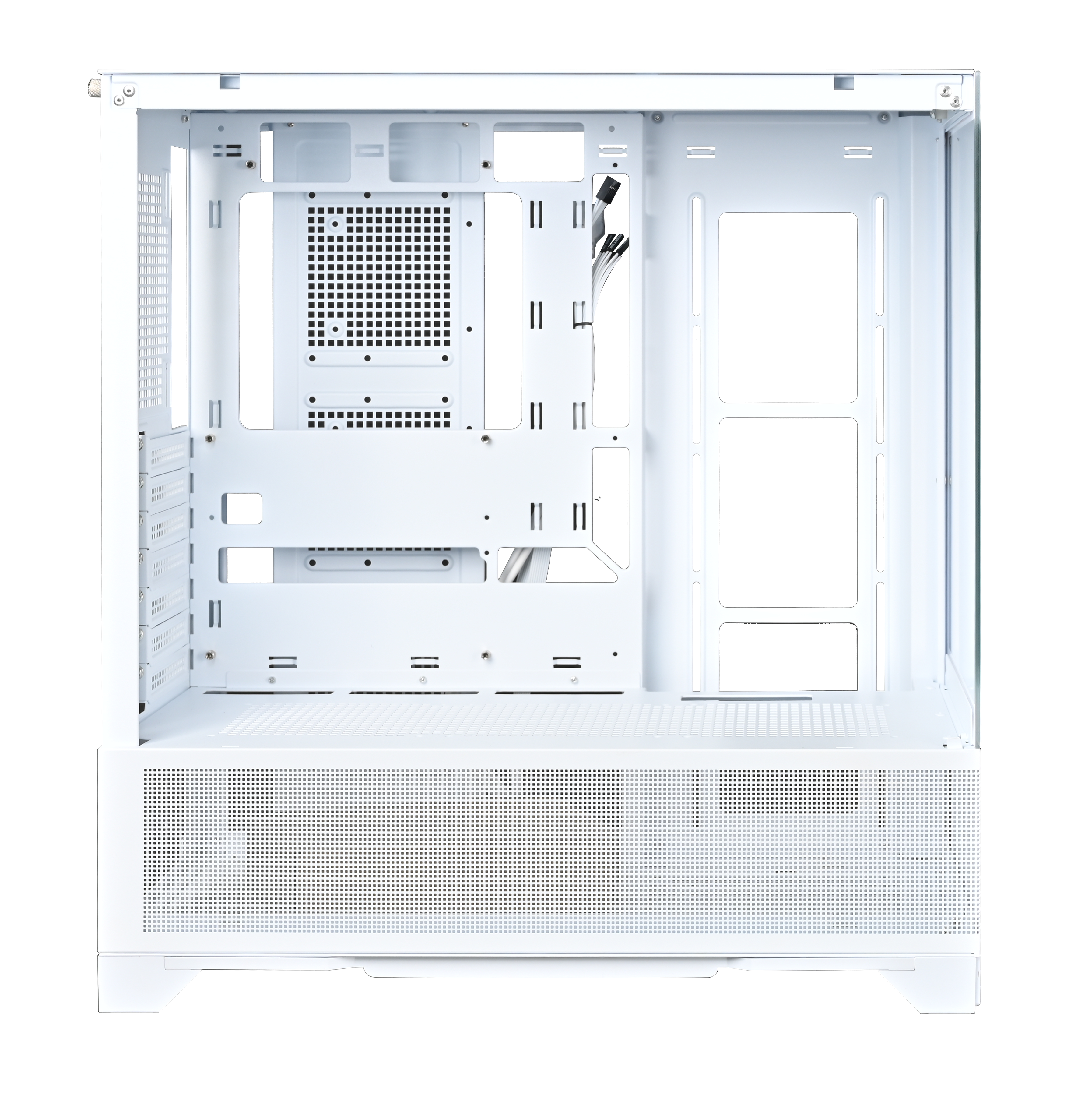

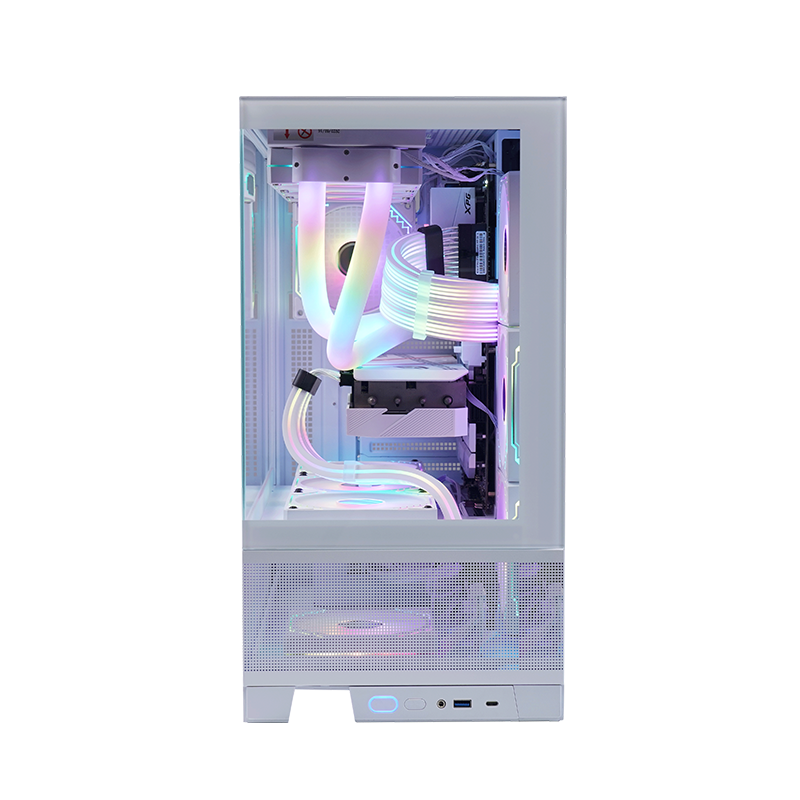

Blade flow V2 - WHITE

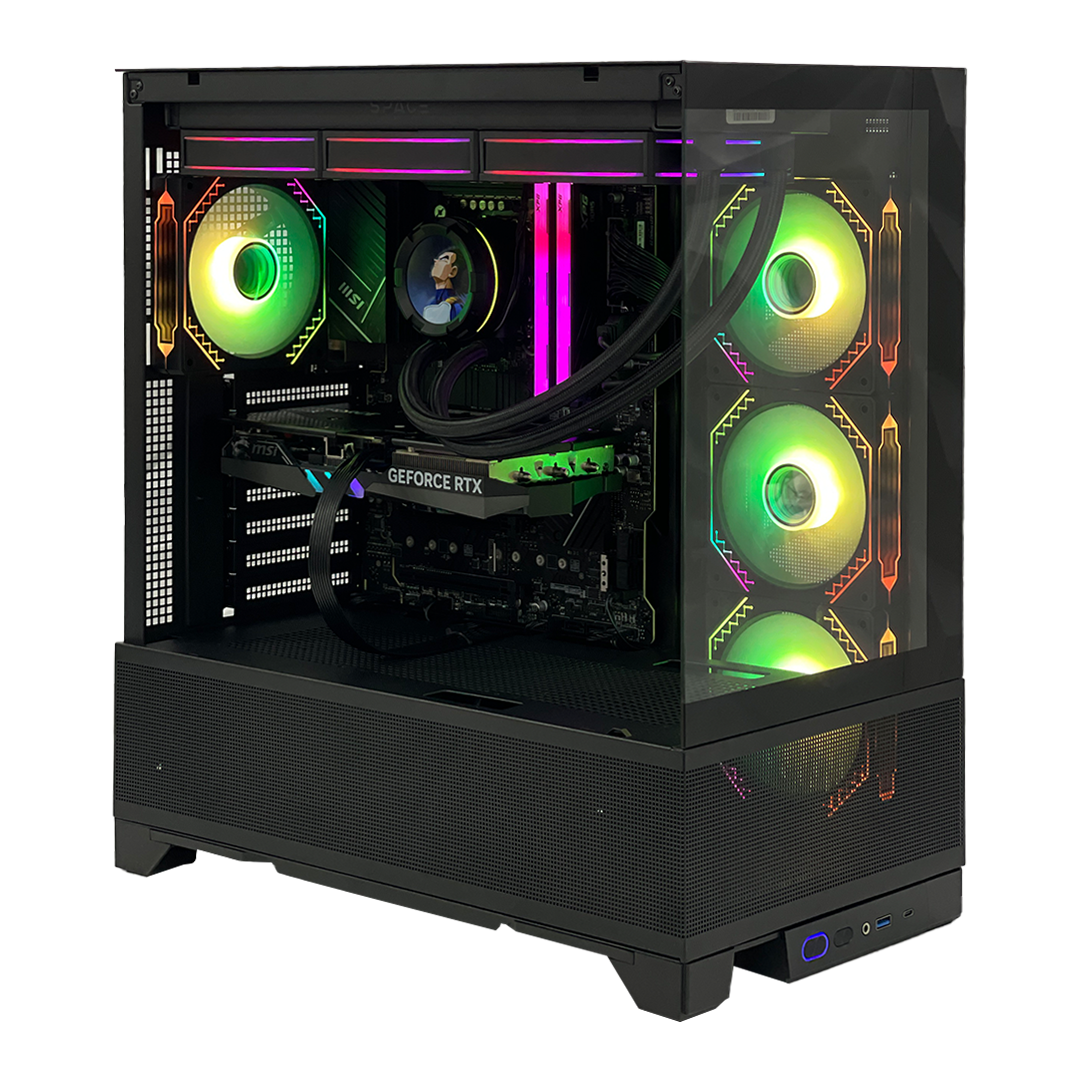

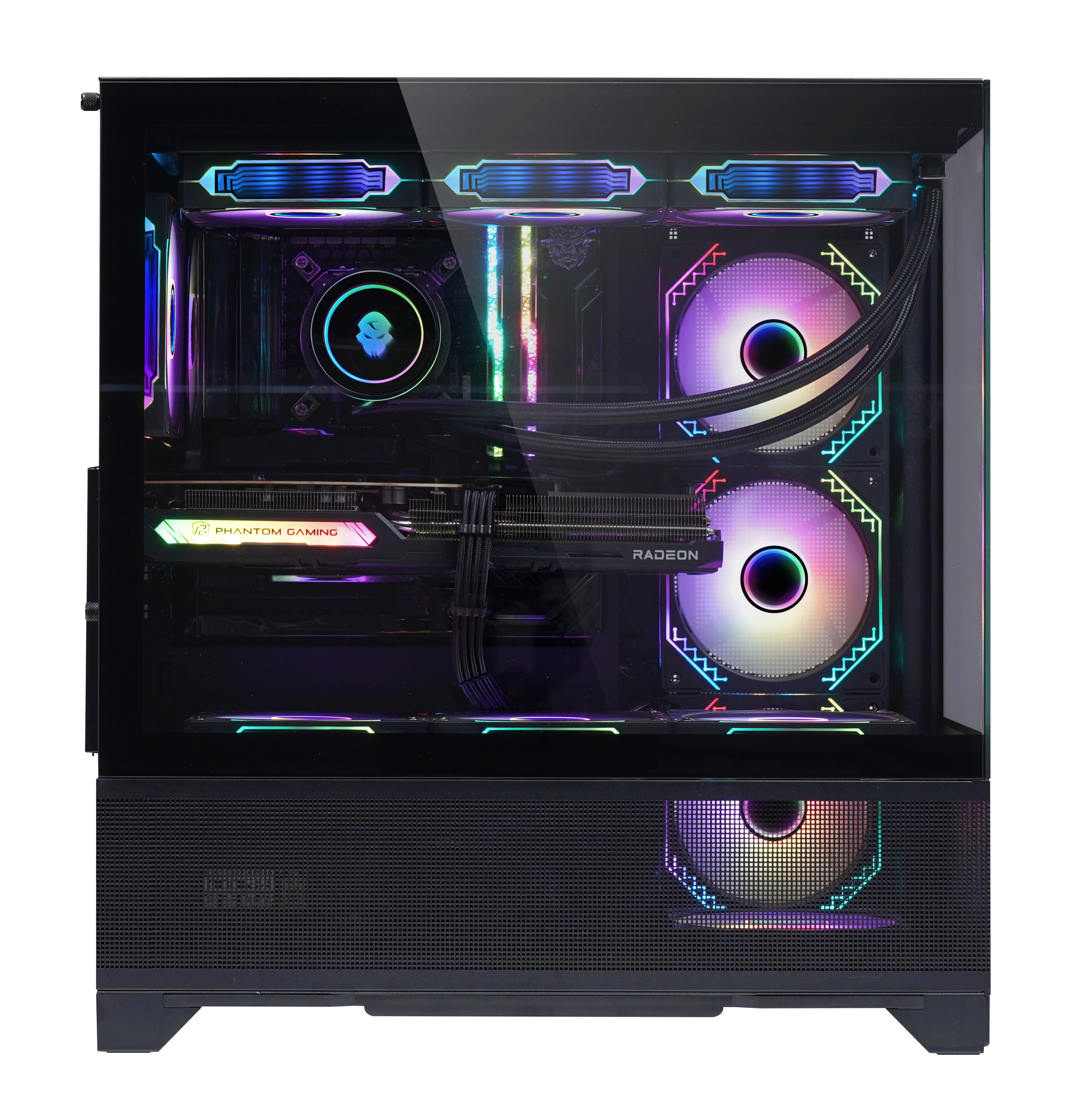

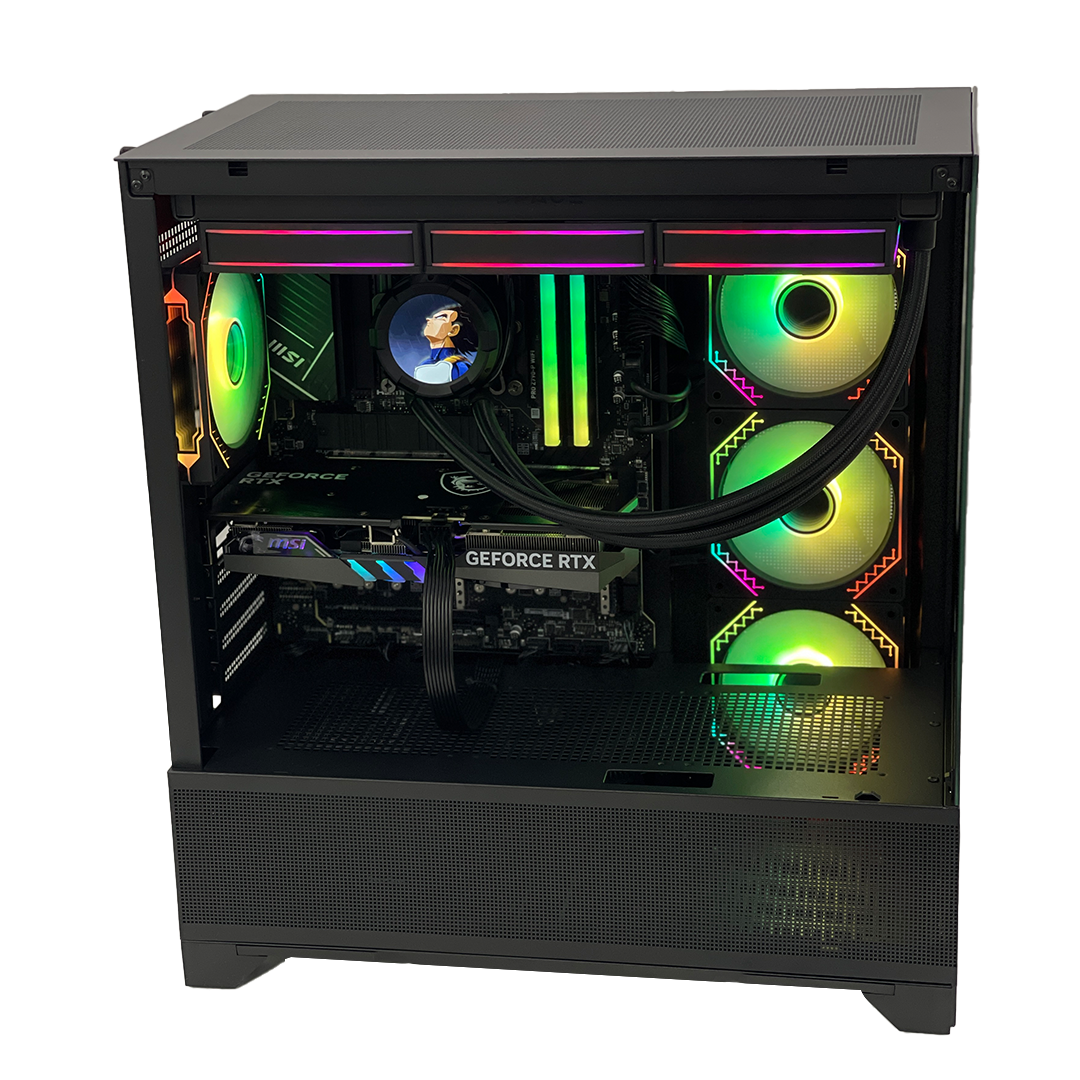

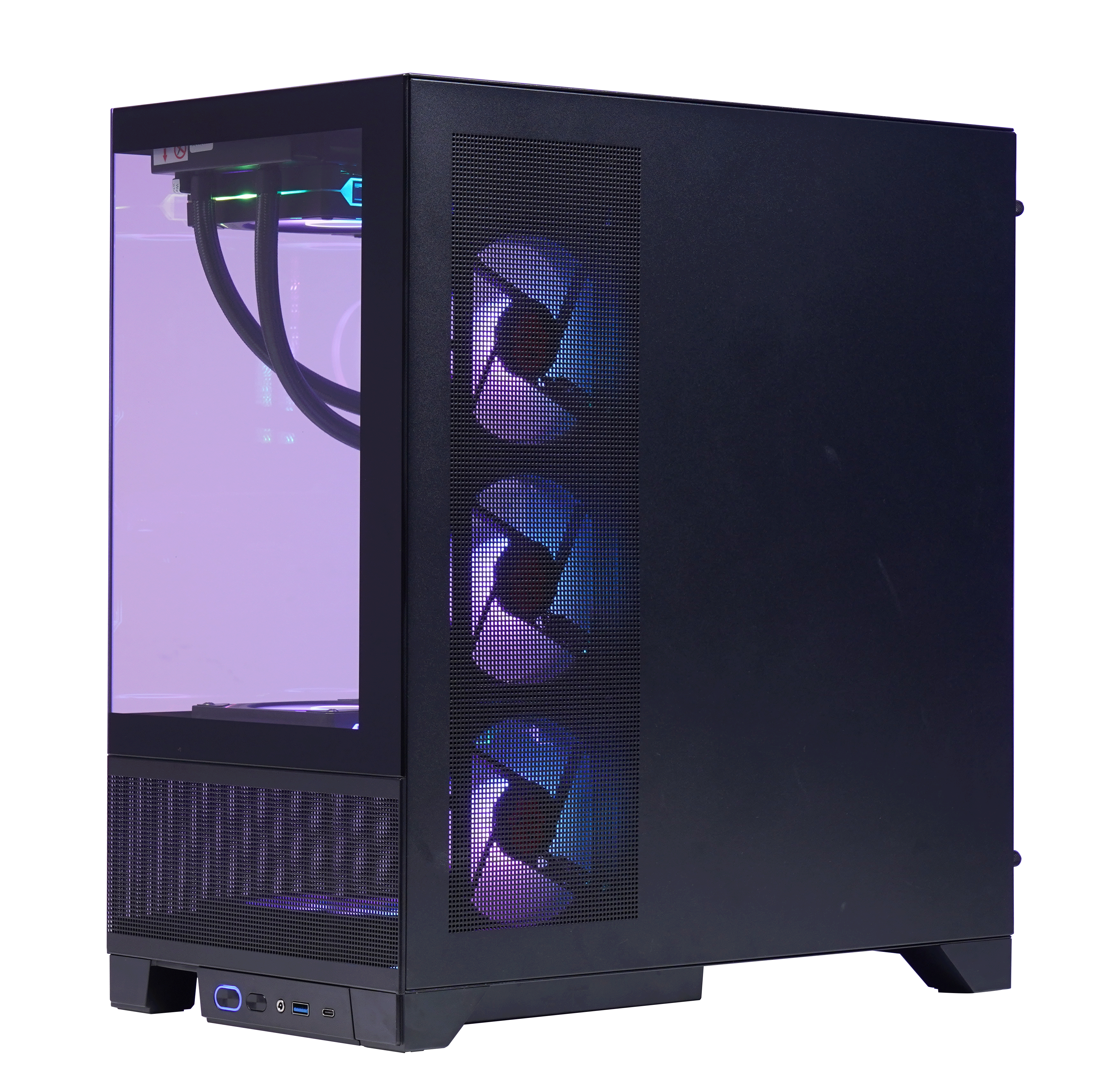

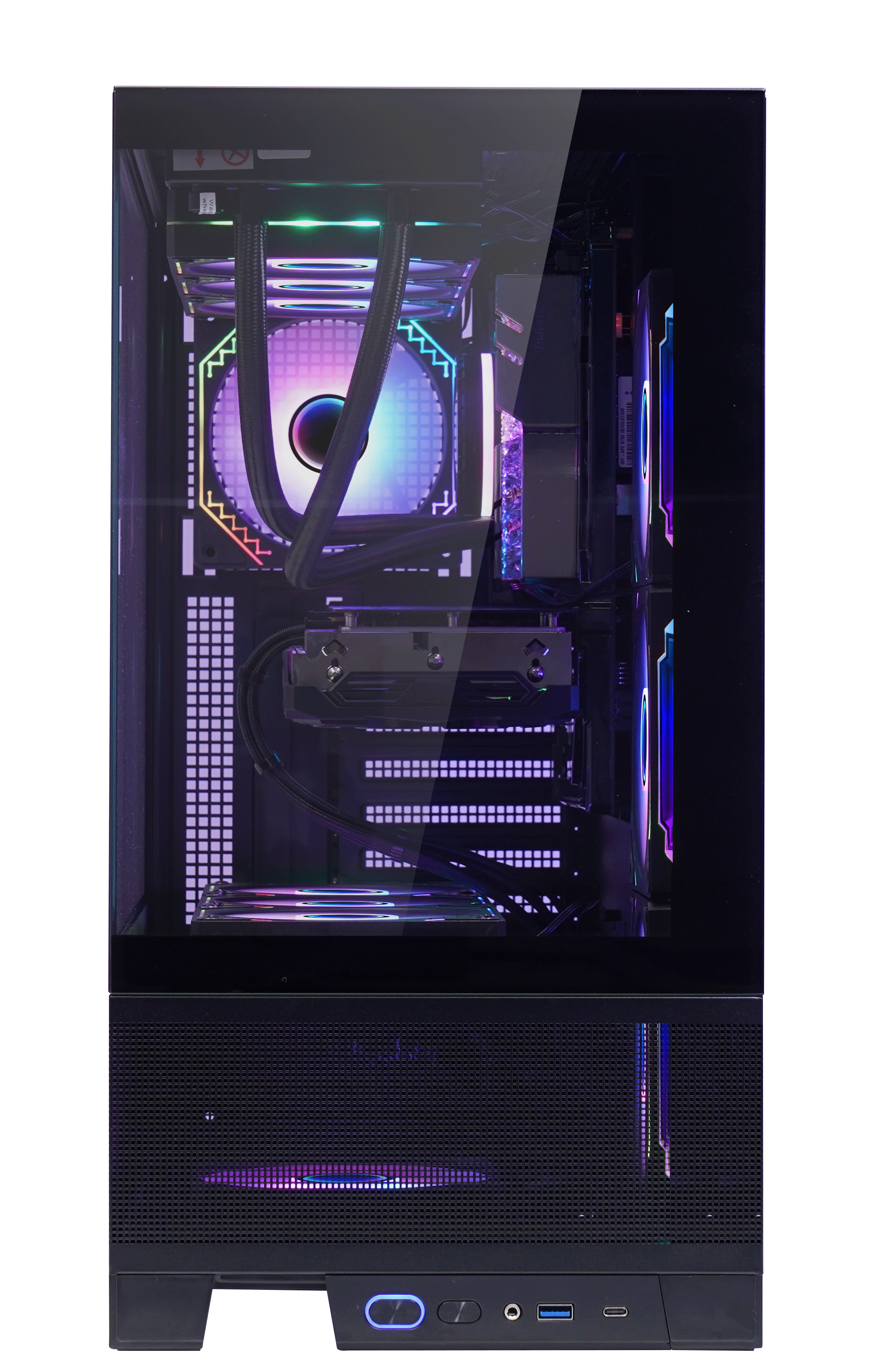

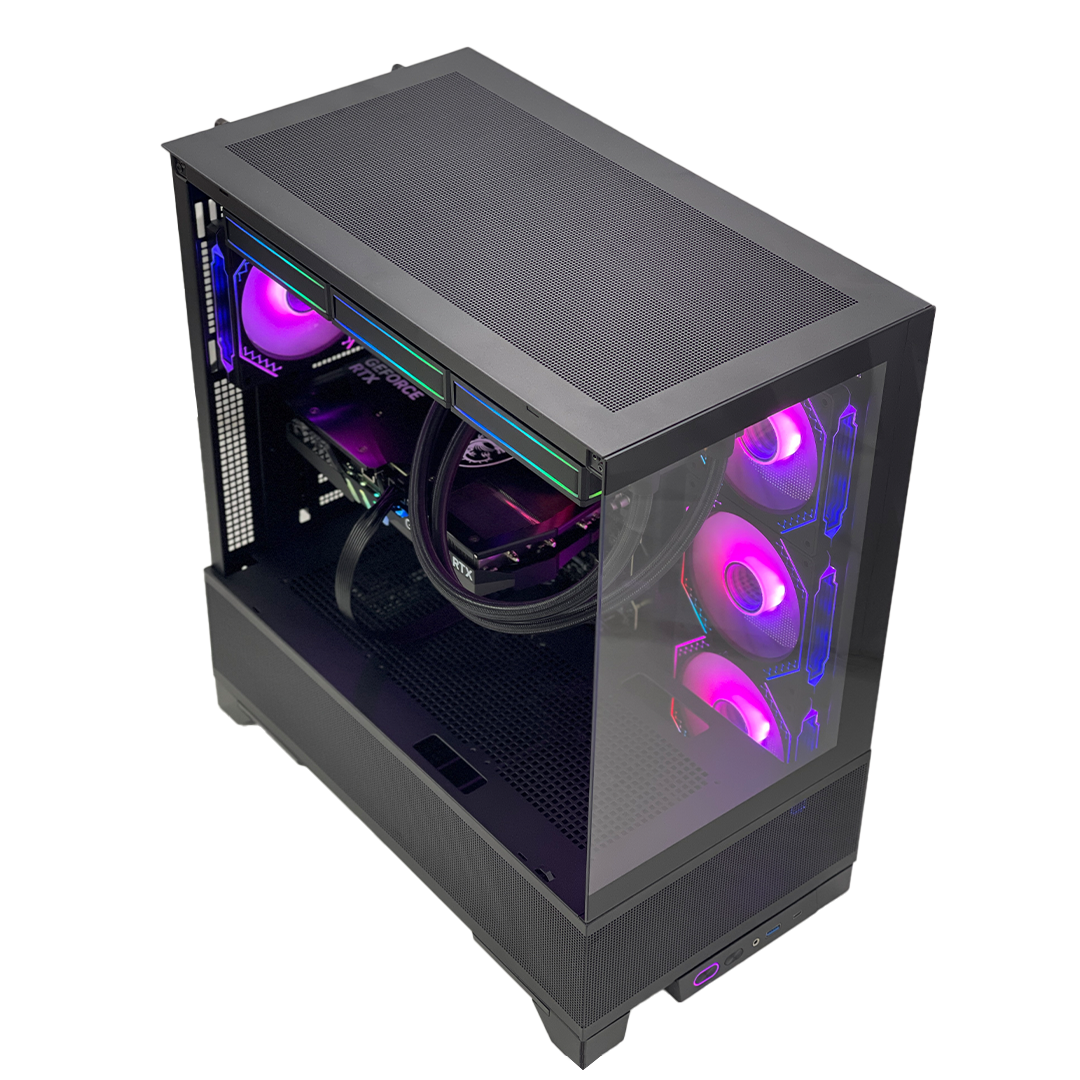

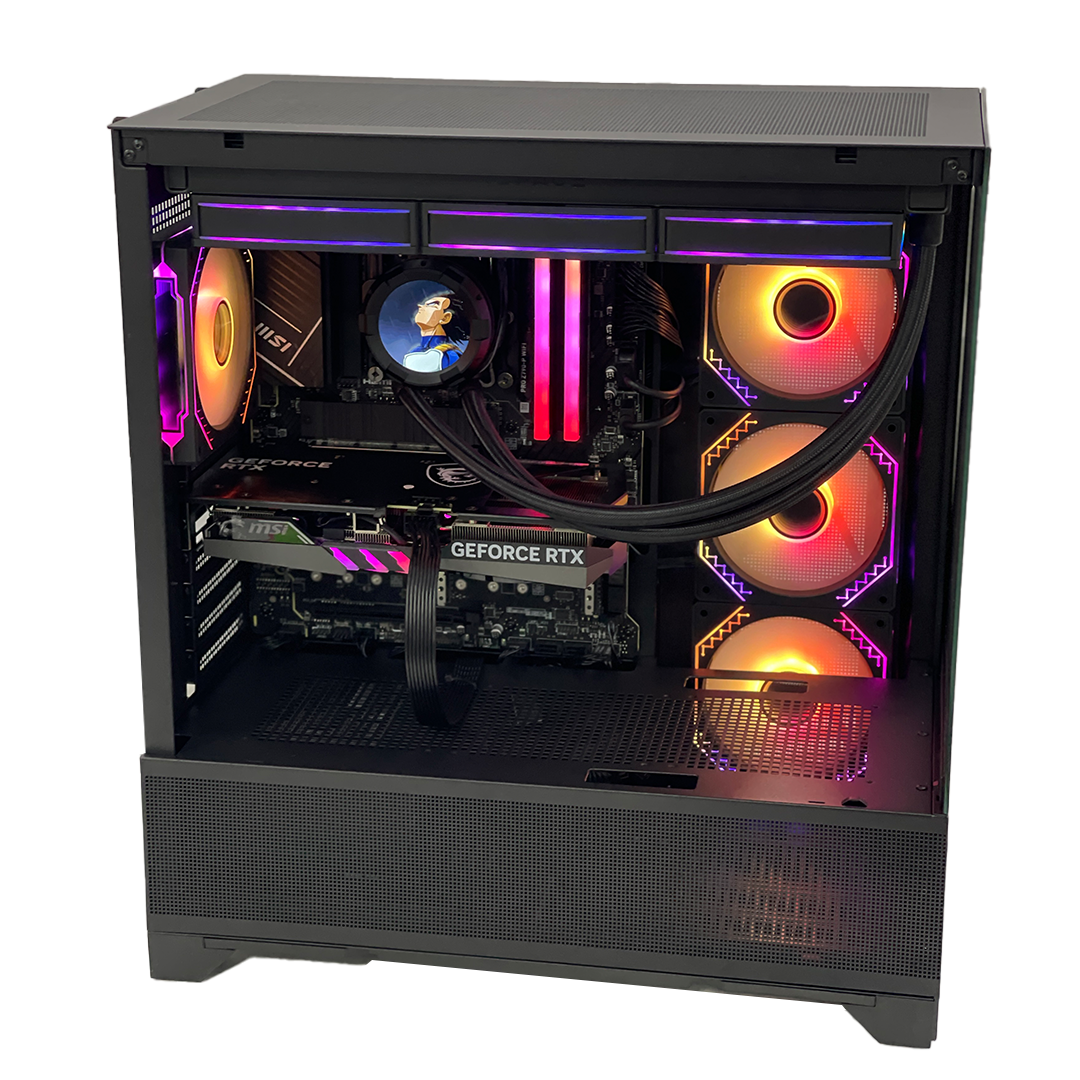

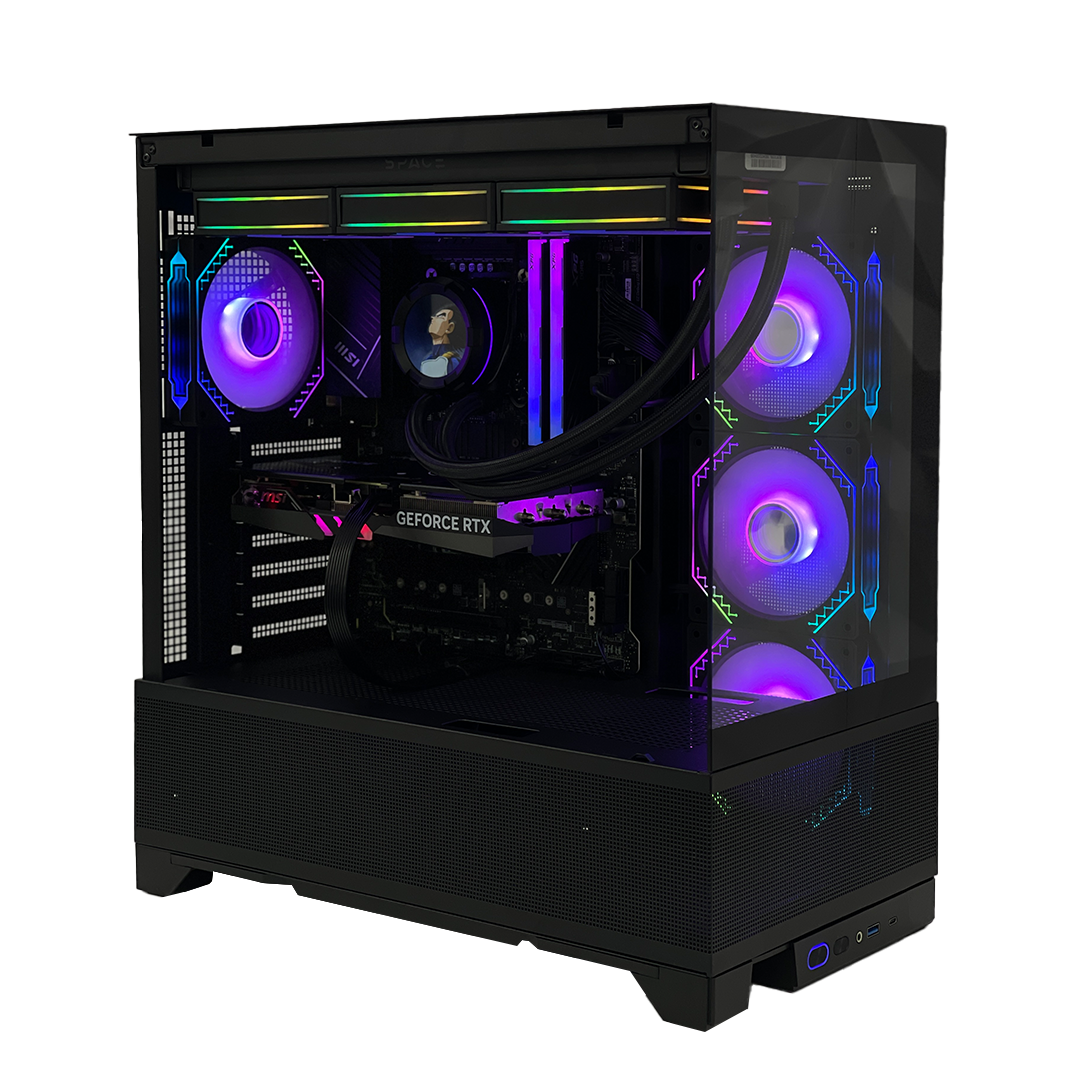

Blade flow V2 - BLACK
Motherboard
ATX/M-ATX/ITX
ATX/M-ATX/ITX
Hard disk
“3.5”HDD *2
“2.5” SDD*2
“3.5”HDD *2
“2.5” SDD*2
Radiator Height
< 185mm
< 185mm
VGA Length
< 420mm
< 420mm
Fan Position
Front : 120mm *3/240mm*1/ 360mm *1 (120mm/240mm/360mm)
Top : 120mm*1 /240mm*2/360mm*1(120/240/360mm)
Bottom : 120mm*3/360mm*1
Rear Fan : 120mm*1
Bulid In Fan : 4 f (Uni Type 4fan )
Front : 120mm *3/240mm*1/ 360mm *1 (120mm/240mm/360mm)
Top : 120mm*1 /240mm*2/360mm*1(120/240/360mm)
Bottom : 120mm*3/360mm*1
Rear Fan : 120mm*1
Bulid In Fan : 4 f (Uni Type 4fan )
I/O
HD Audio; type C*1; USB 3.0*1
HD Audio; type C*1; USB 3.0*1
Power size
140/160/200mm ATX
140/160/200mm ATX
Expansion slot
PCI 7
PCI 7
Color
White
Black
Case size
L434*W245*H475mm
L434*W245*H475mm
Carton Size
L535*W405*H525mm
L535*W405*H525mm
EAN Code
6974215270104
6974215270098
