Description

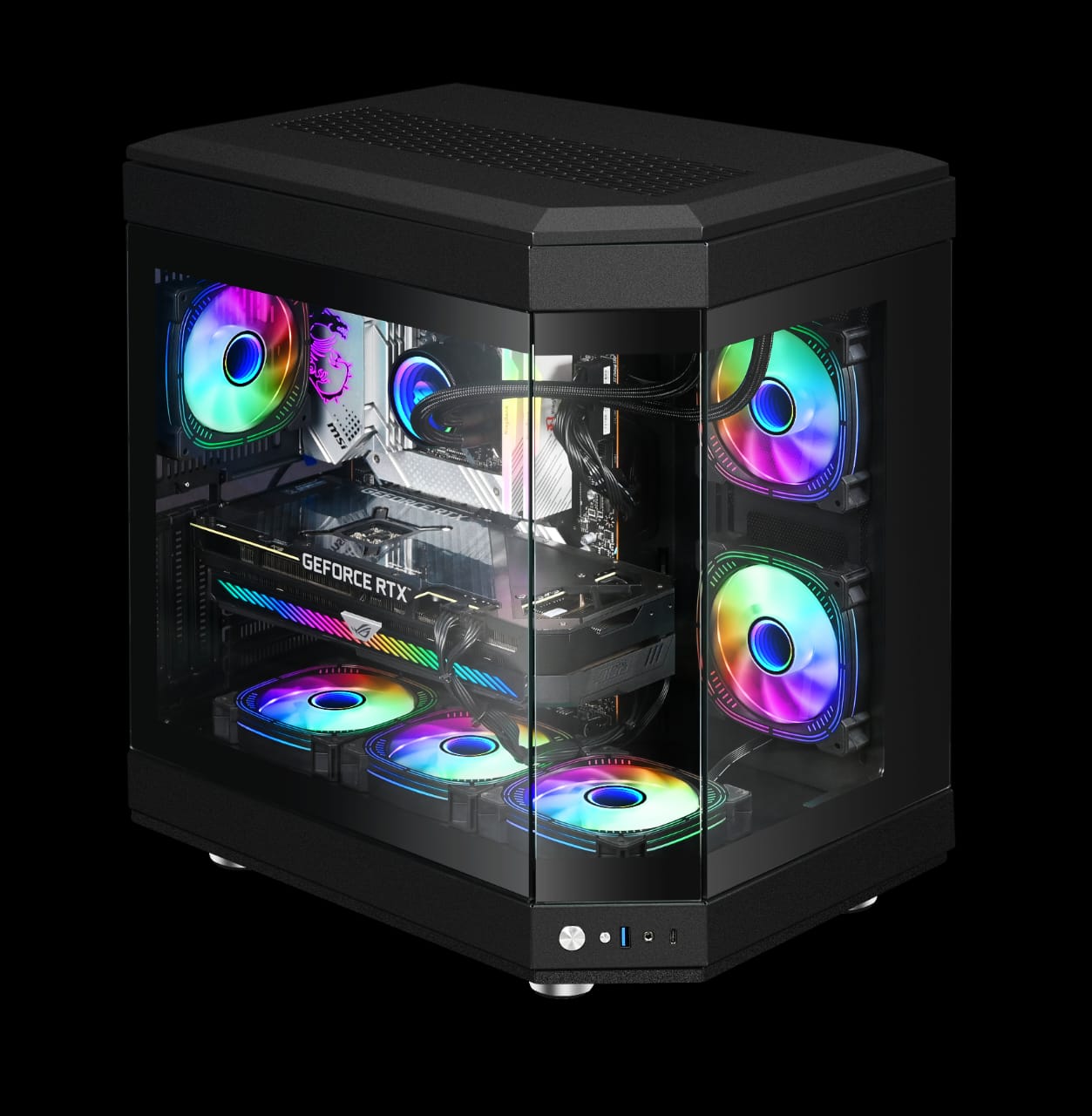

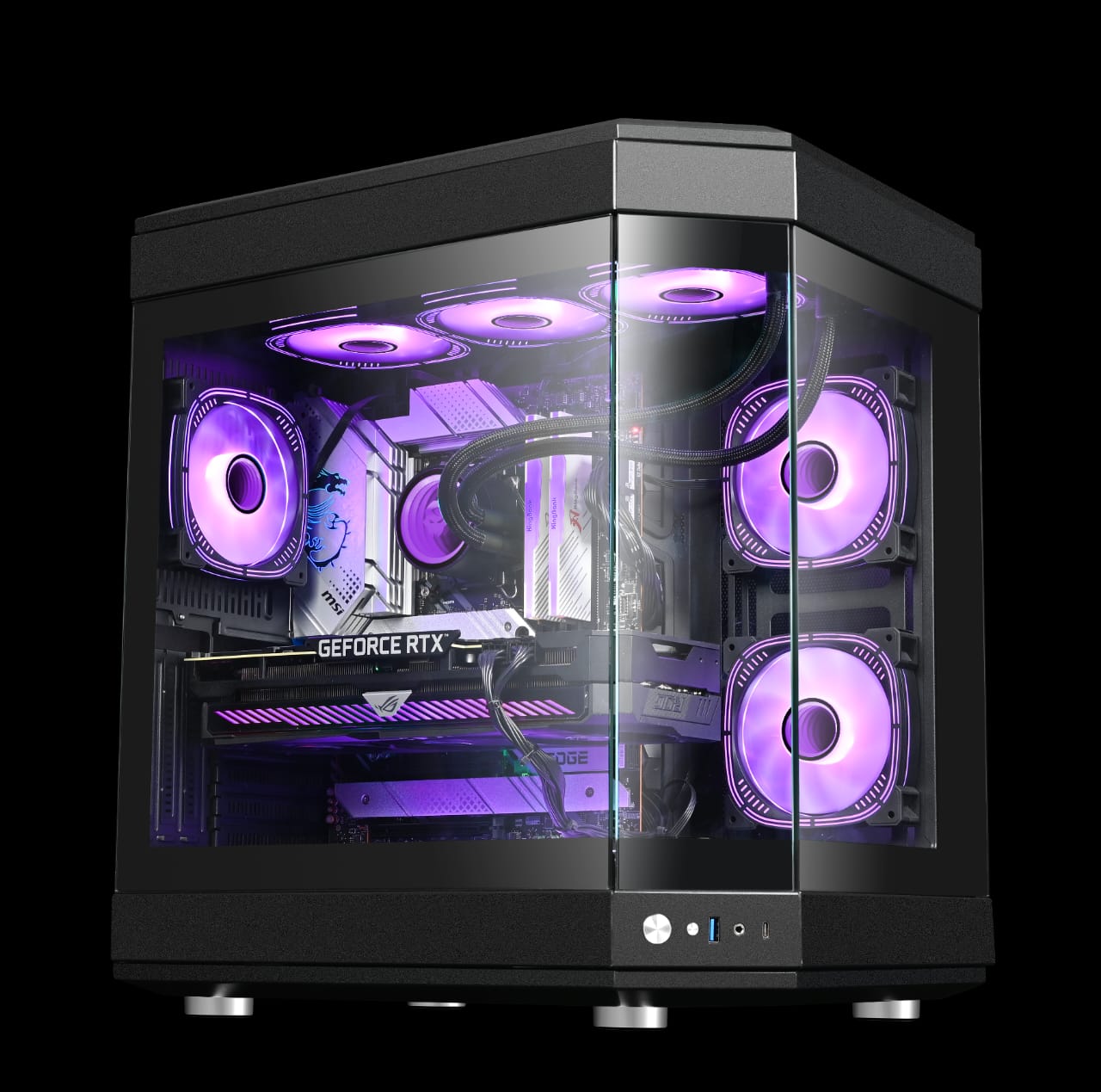

Y40 - 6F - UNI - BLACK

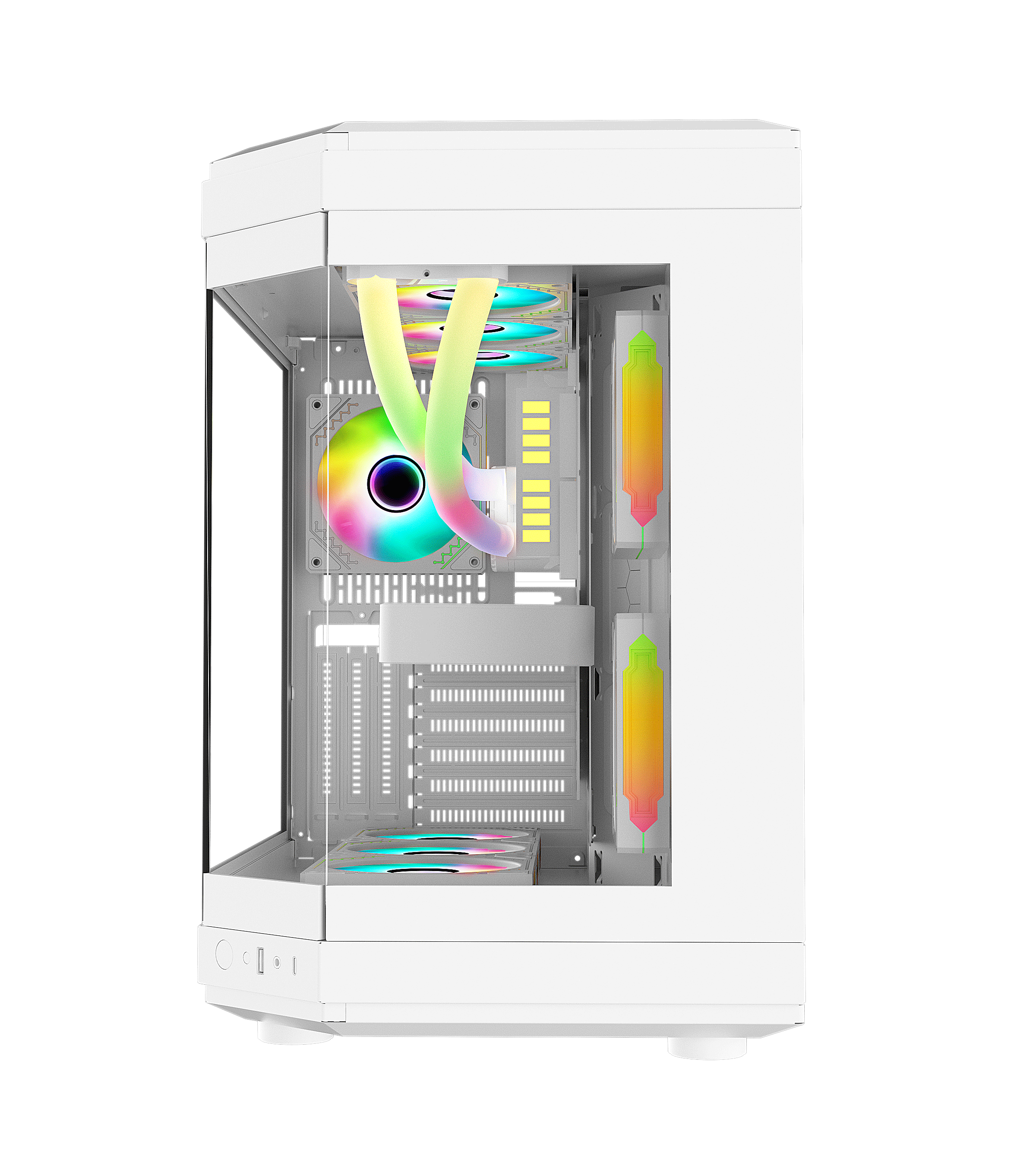

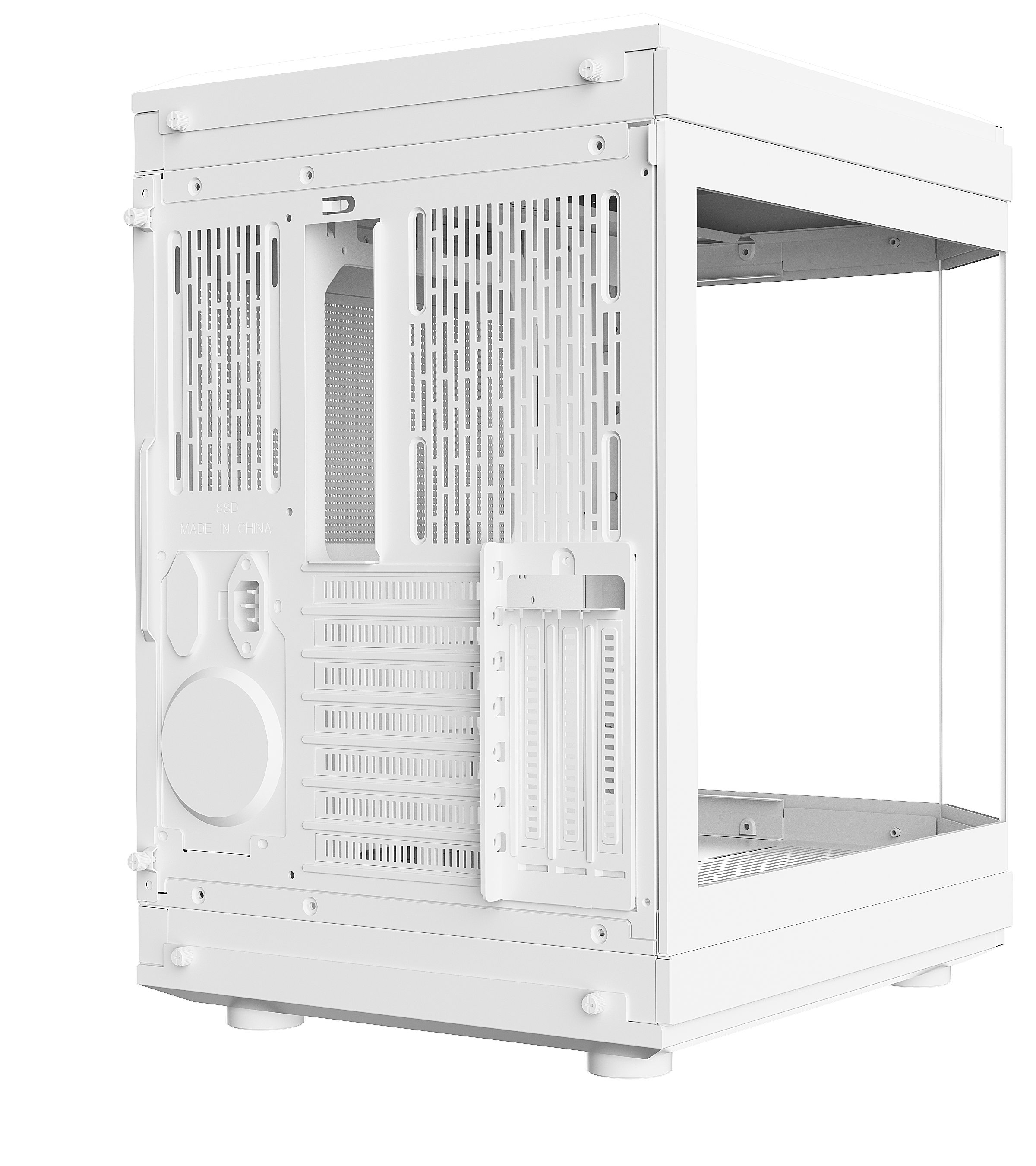

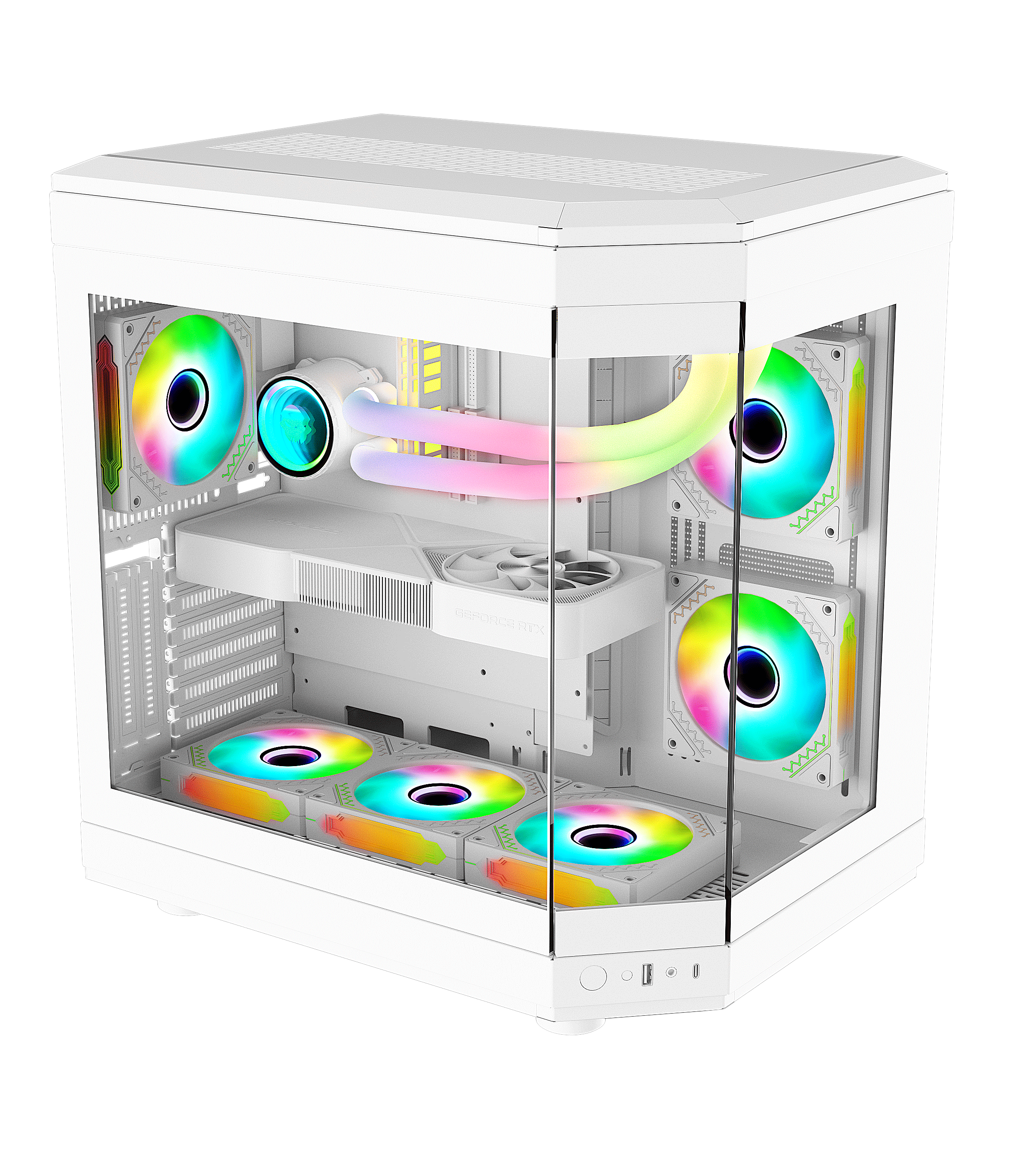

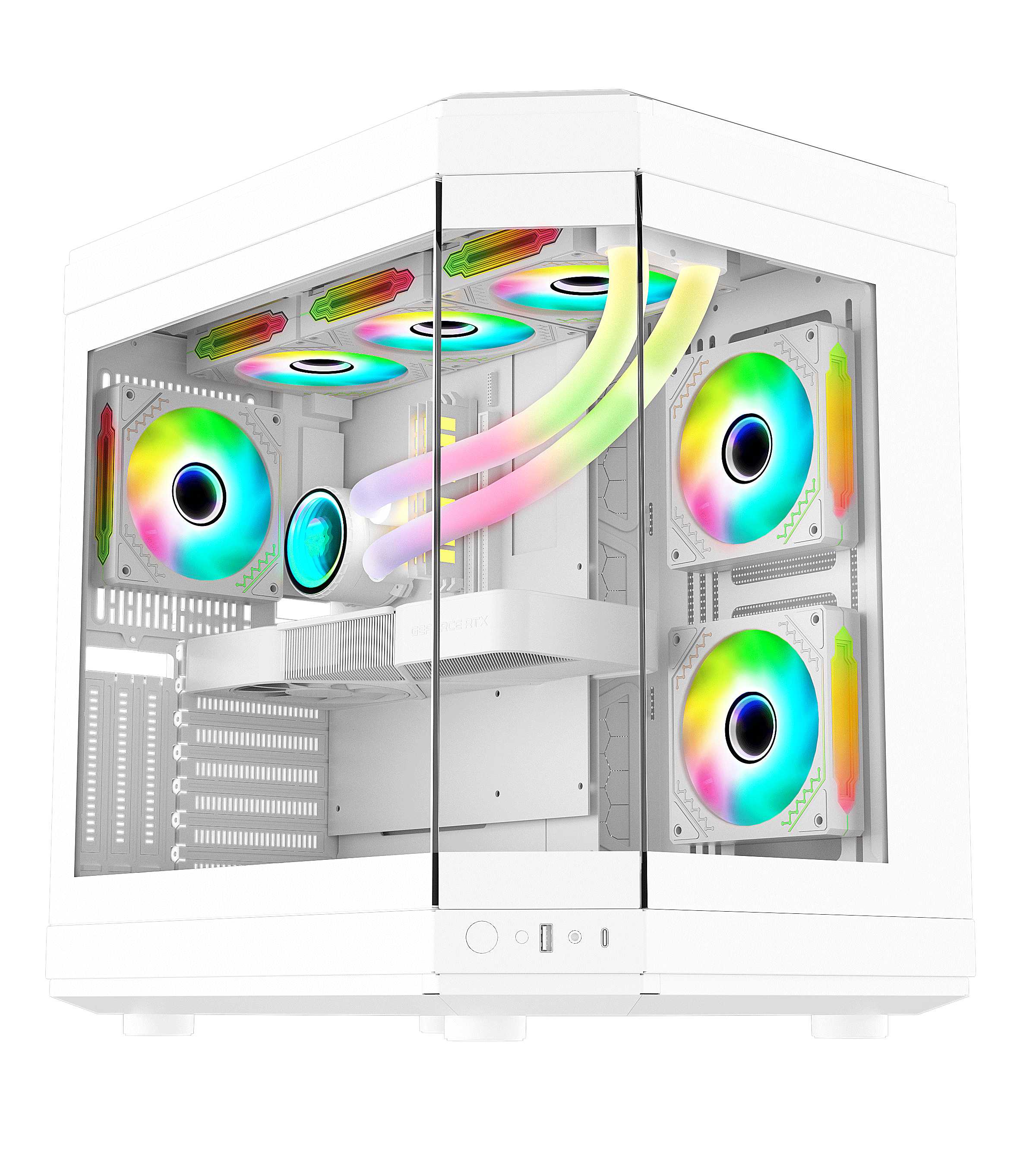

Y40 - 6F - UNI - WHITE

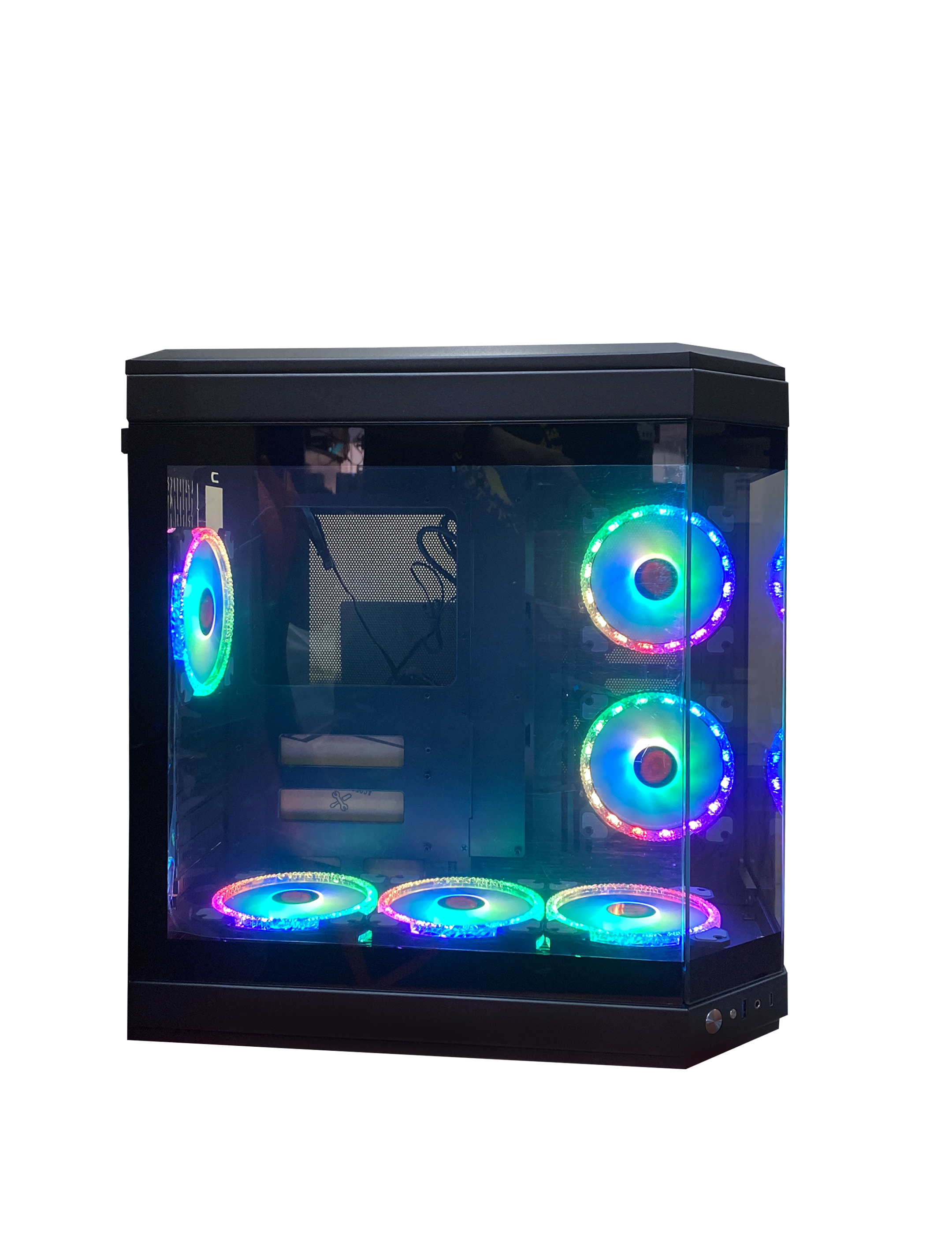

Y40 - 6F - DIAMOND - BLACK

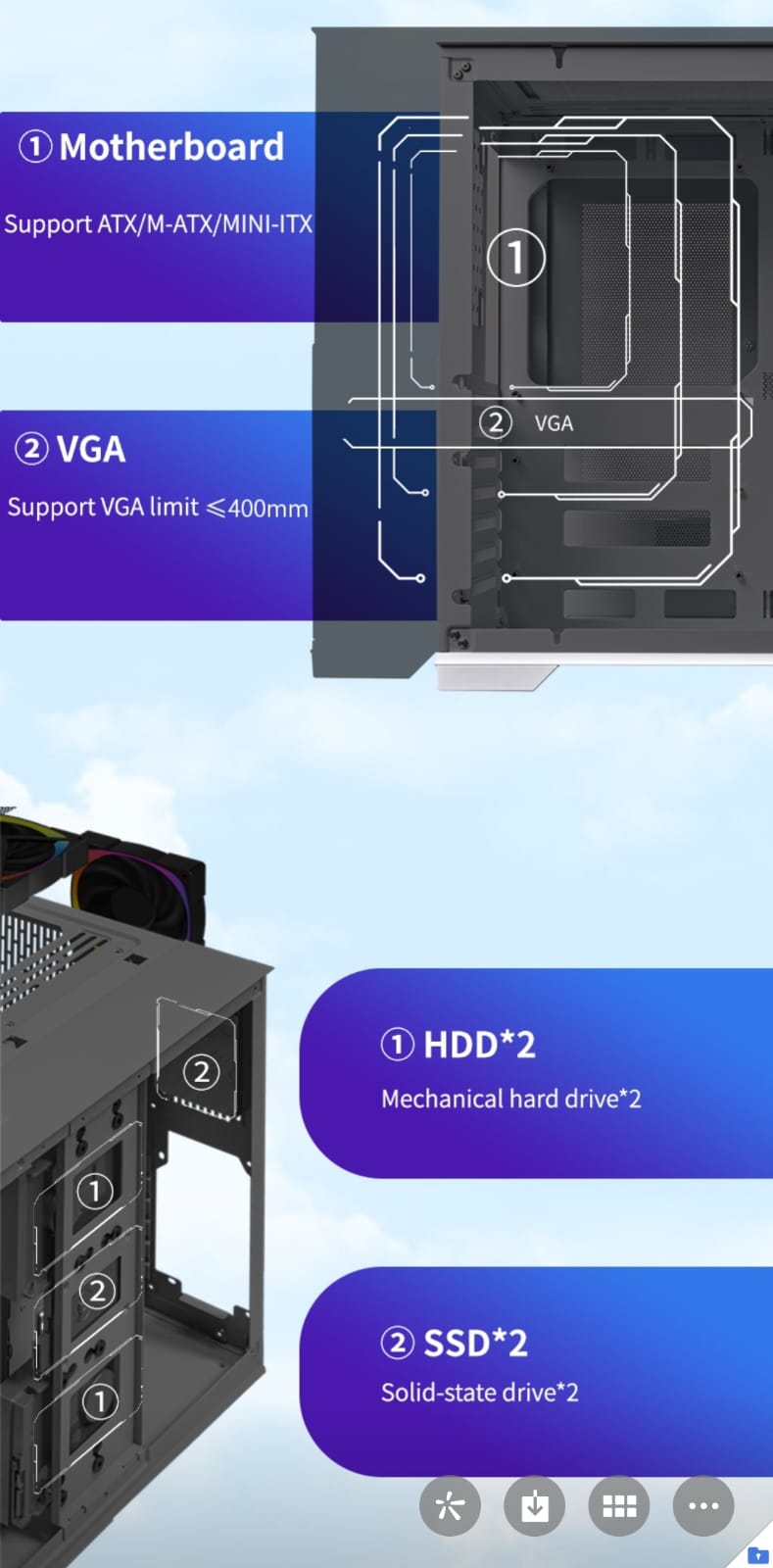

Motherboard
ATX / M-ATX /ITX
ATX / M-ATX /ITX
ATX / M-ATX /ITX
Hard disk
“3.5”HDD *2.
“2.5” SDD*2
“3.5”HDD *2.
“2.5” SDD*2
“3.5”HDD *2.
“2.5” SDD*2
VGA Length
< 400mm
< 400mm
< 400mm

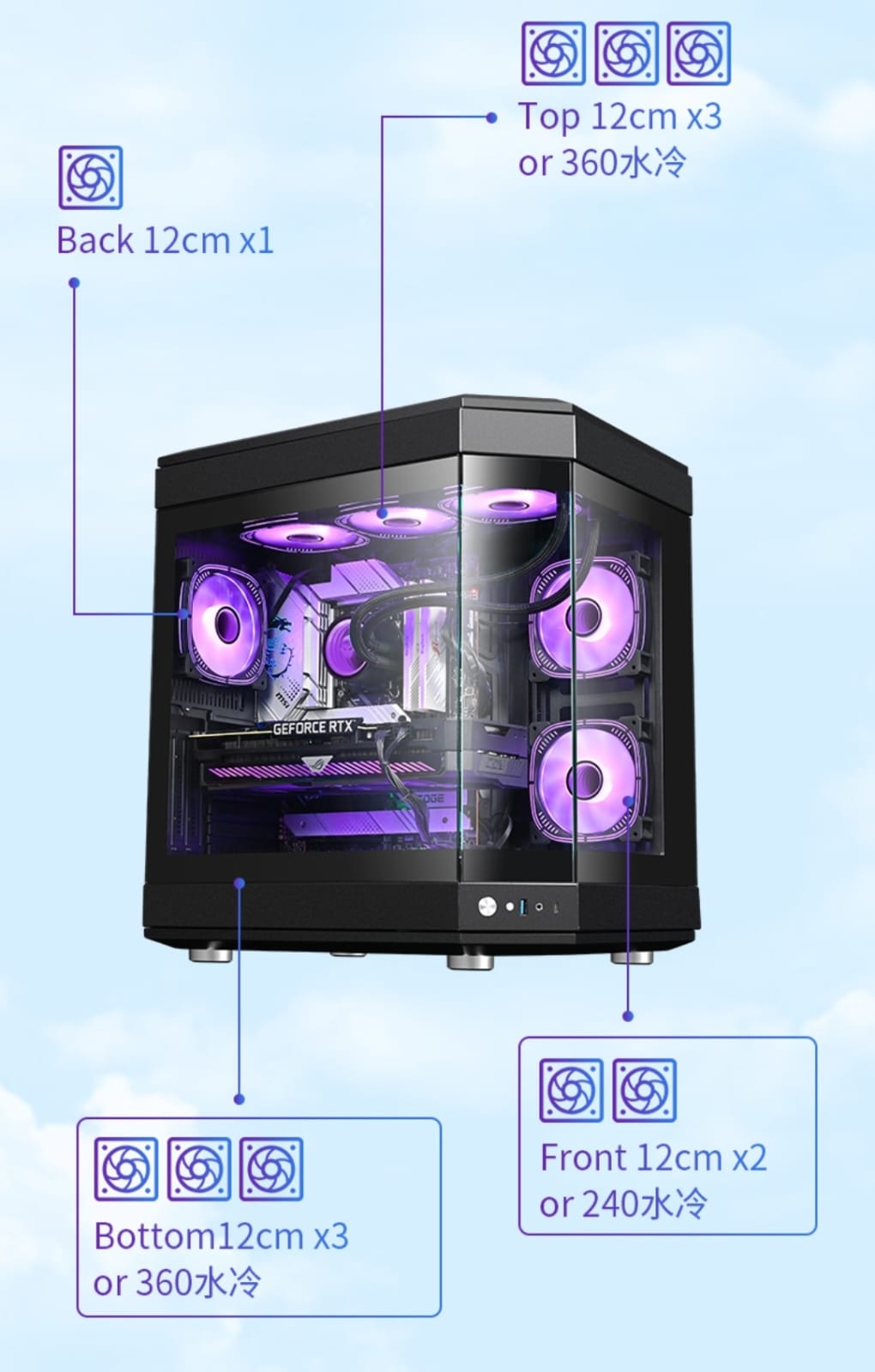

Fan Position
Front : 120mm *2 / 240mm *1 (120mm/240mm)
Top : 120mm*1 /240mm*2/360mm*1(120/240/360mm)
Bottom : 120mm*3/360mm*1
Rear Fan : 120mm*1
Build In Fan : 6 Df (Diamond or crystal fan)
Front : 120mm *2 / 240mm *1 (120mm/240mm)
Top : 120mm*1 /240mm*2/360mm*1(120/240/360mm)
Bottom : 120mm*3/360mm*1
Rear Fan : 120mm*1
Build In Fan : 6 f (Uni Type 6 fan )
Front : 120mm *2 / 240mm *1 (120mm/240mm)
Top : 120mm*1 /240mm*2/360mm*1(120/240/360mm)
Bottom : 120mm*3/360mm*1
Rear Fan : 120mm*1
Build In Fan : 6 f (Uni Type 6 fan )
Interface
Top Hd Audio+ /USB 3.0 *1/Type-C *1
Top Hd Audio+ /USB 3.0 *1/Type-C *1
Top Hd Audio+ /USB 3.0 *1/Type-C *1
Power Supply
ATX
ATX
ATX

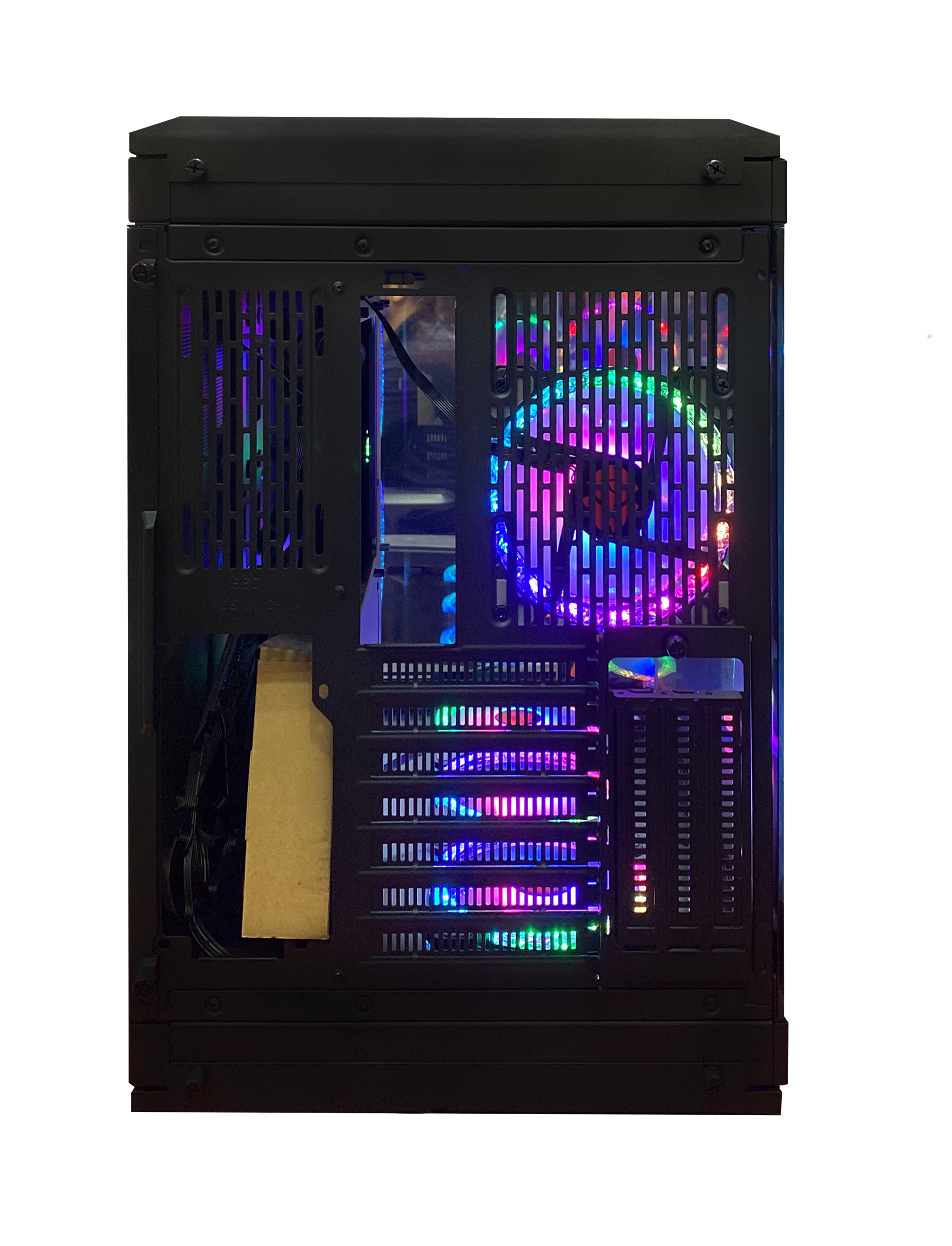

Expansion slot
PCI Slot: 7+3 (compatible with 40 Series Graphics card )
PCI Slot: 7+3 (compatible with 40 Series Graphics card )
PCI Slot: 7+3 (compatible with 40 Series Graphics card )
Color
BLACK
WHITE
BLACK
Case Size
L428*W310*H460mm (Included foot pad height )
L428*W310*H460mm (Included foot pad height )
L428*W310*H460mm (Included foot pad height )
Hardware side
L420*W230*H480mm
L420*W230*H480mm
L420*W230*H480mm
EAN Code
6974215270050
6974215270067
6974215270050
