Description

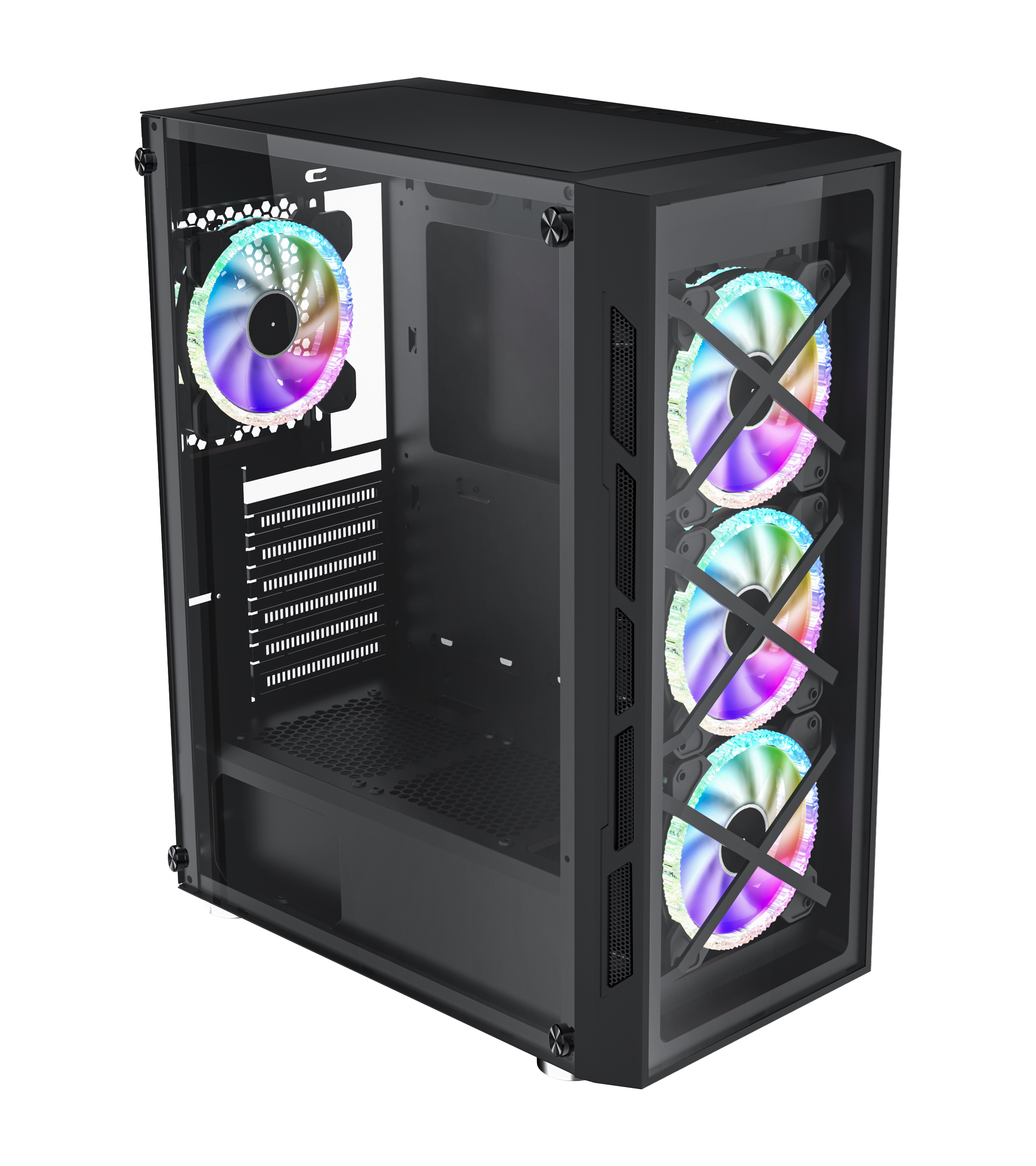

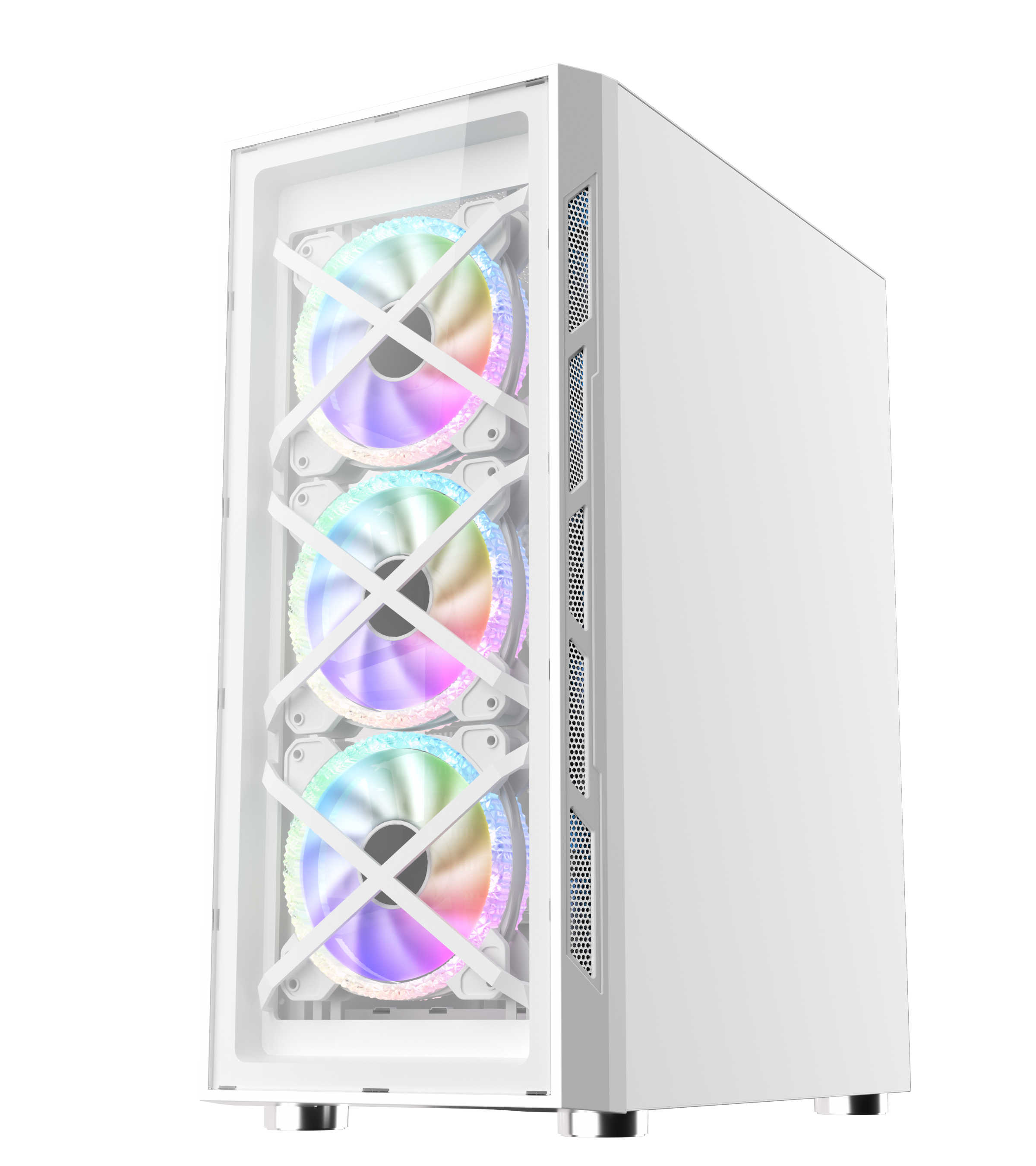

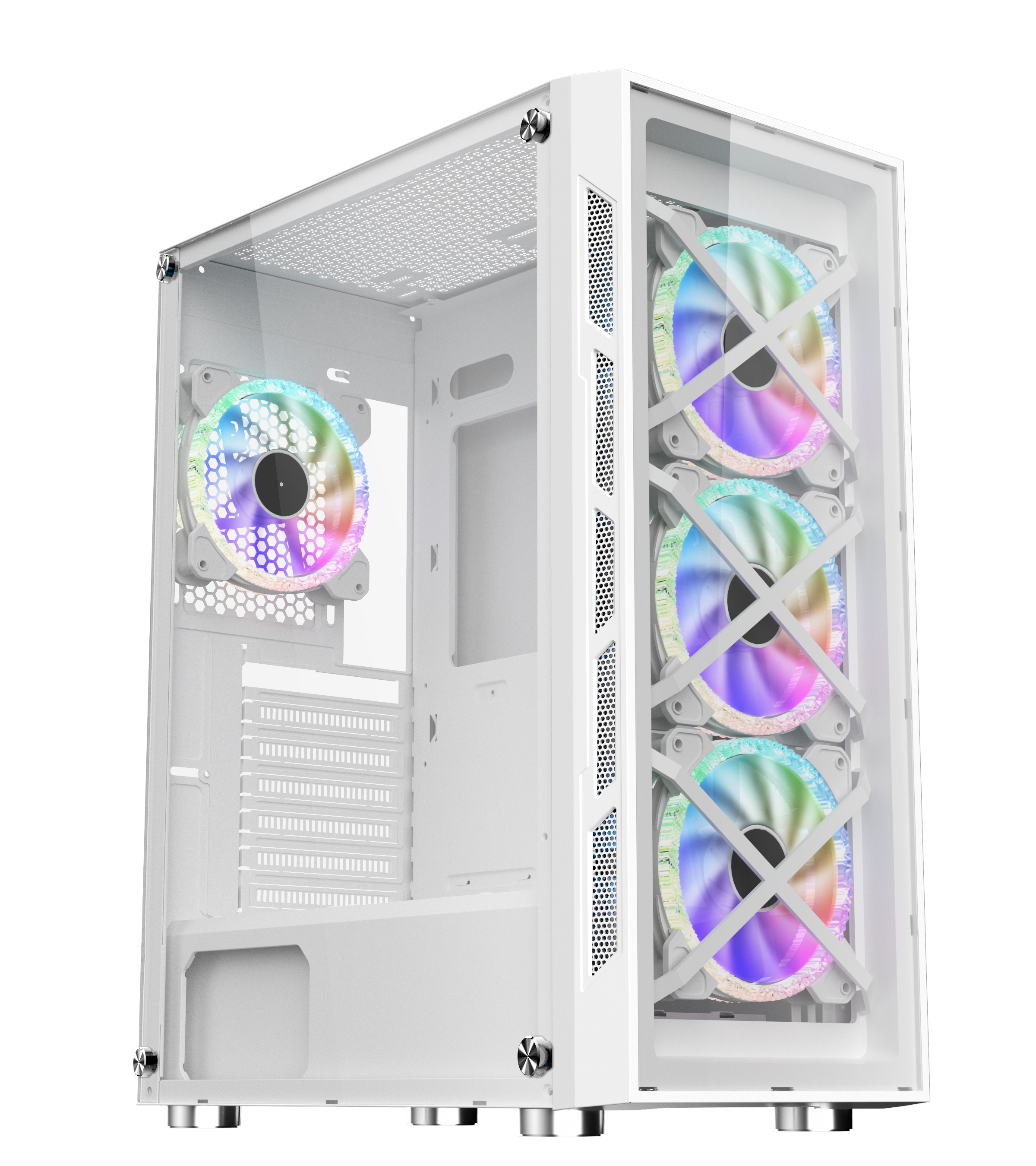

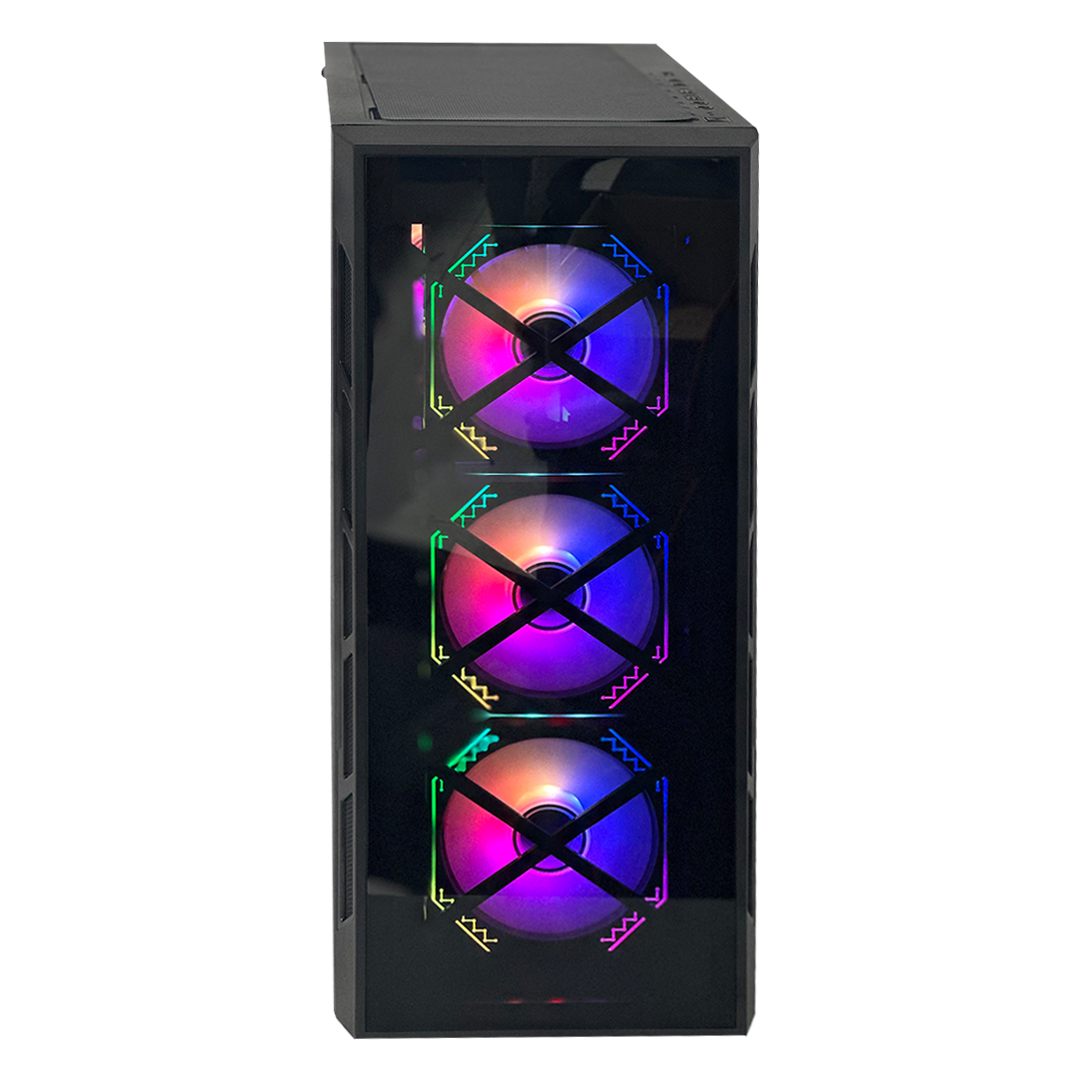

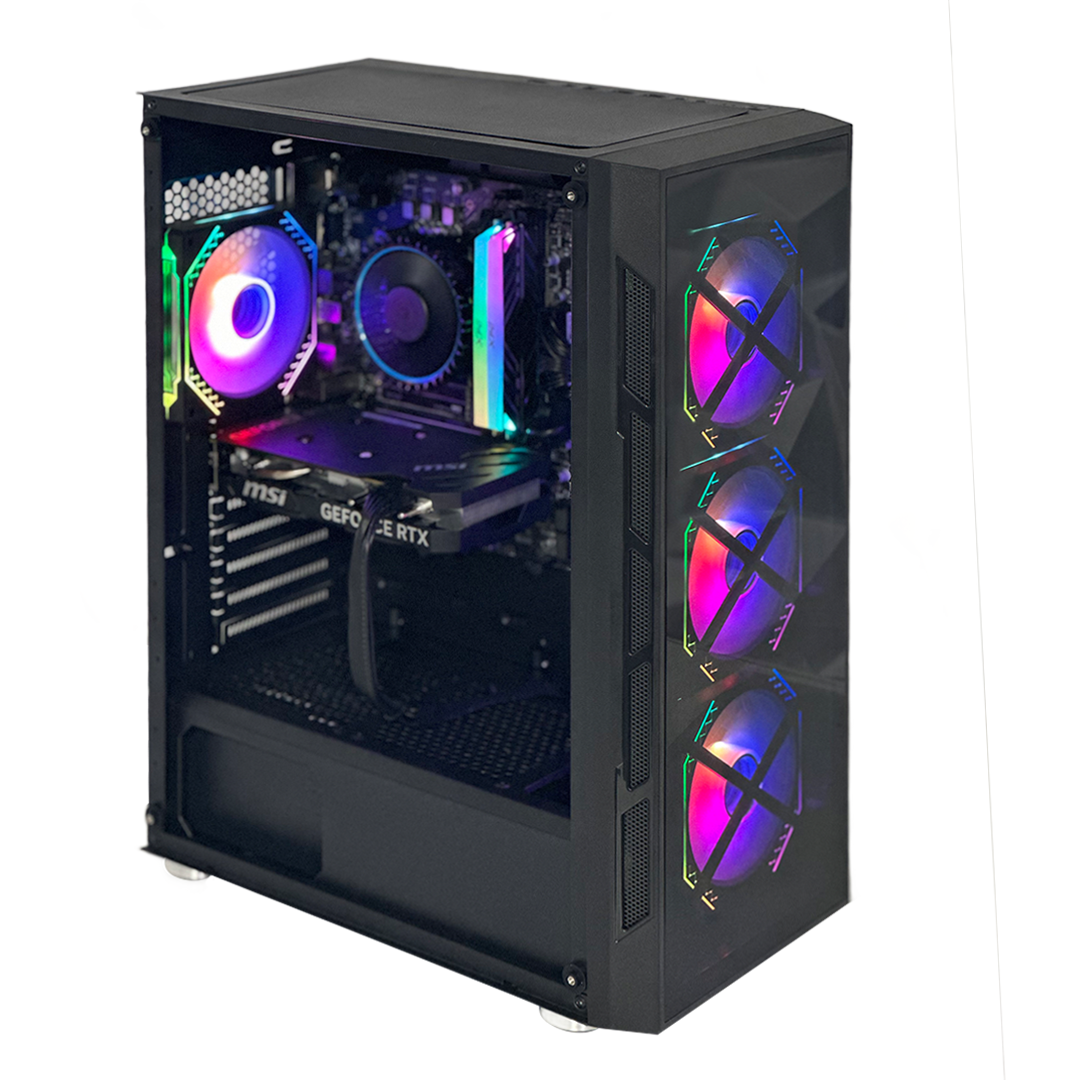

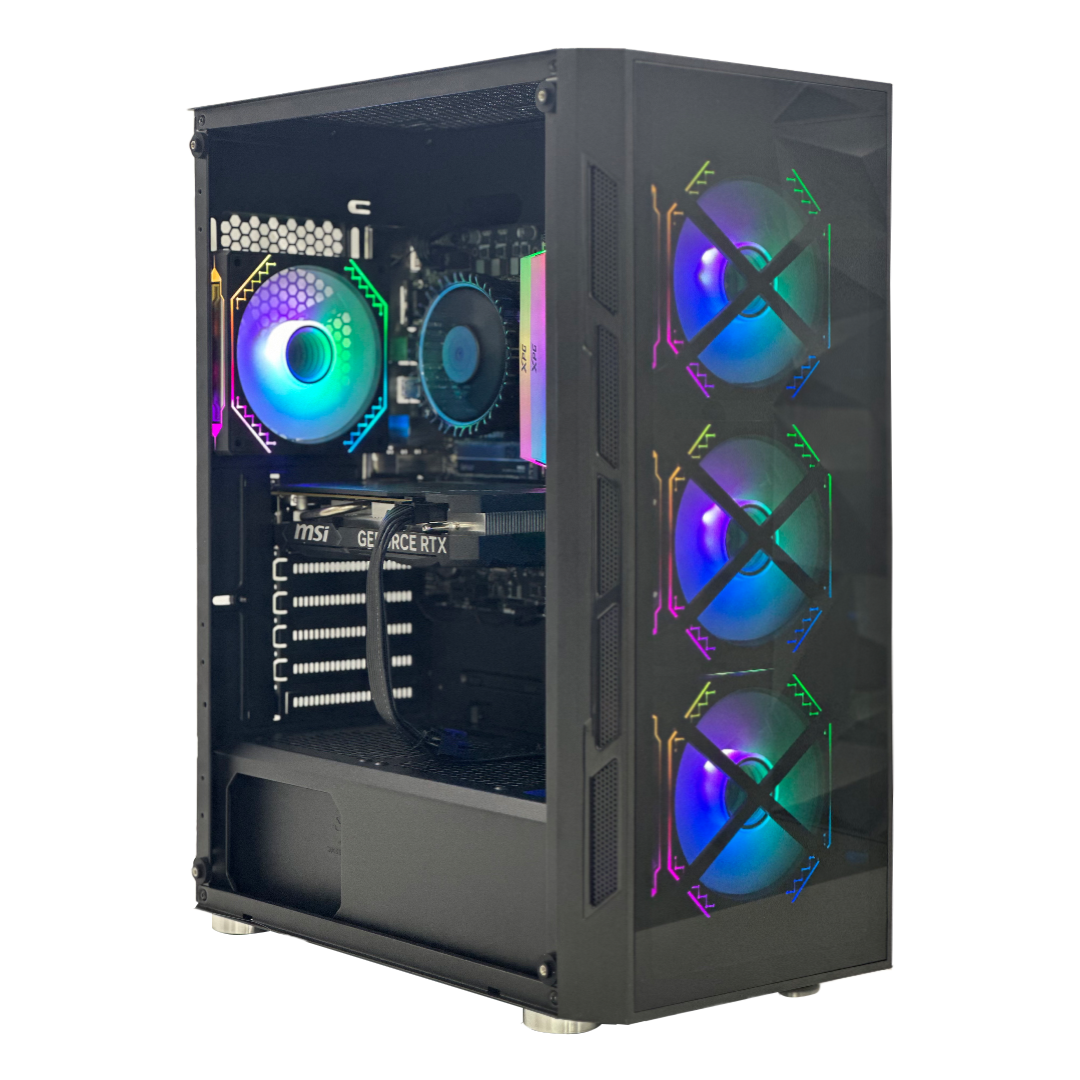

TRIO 4DF

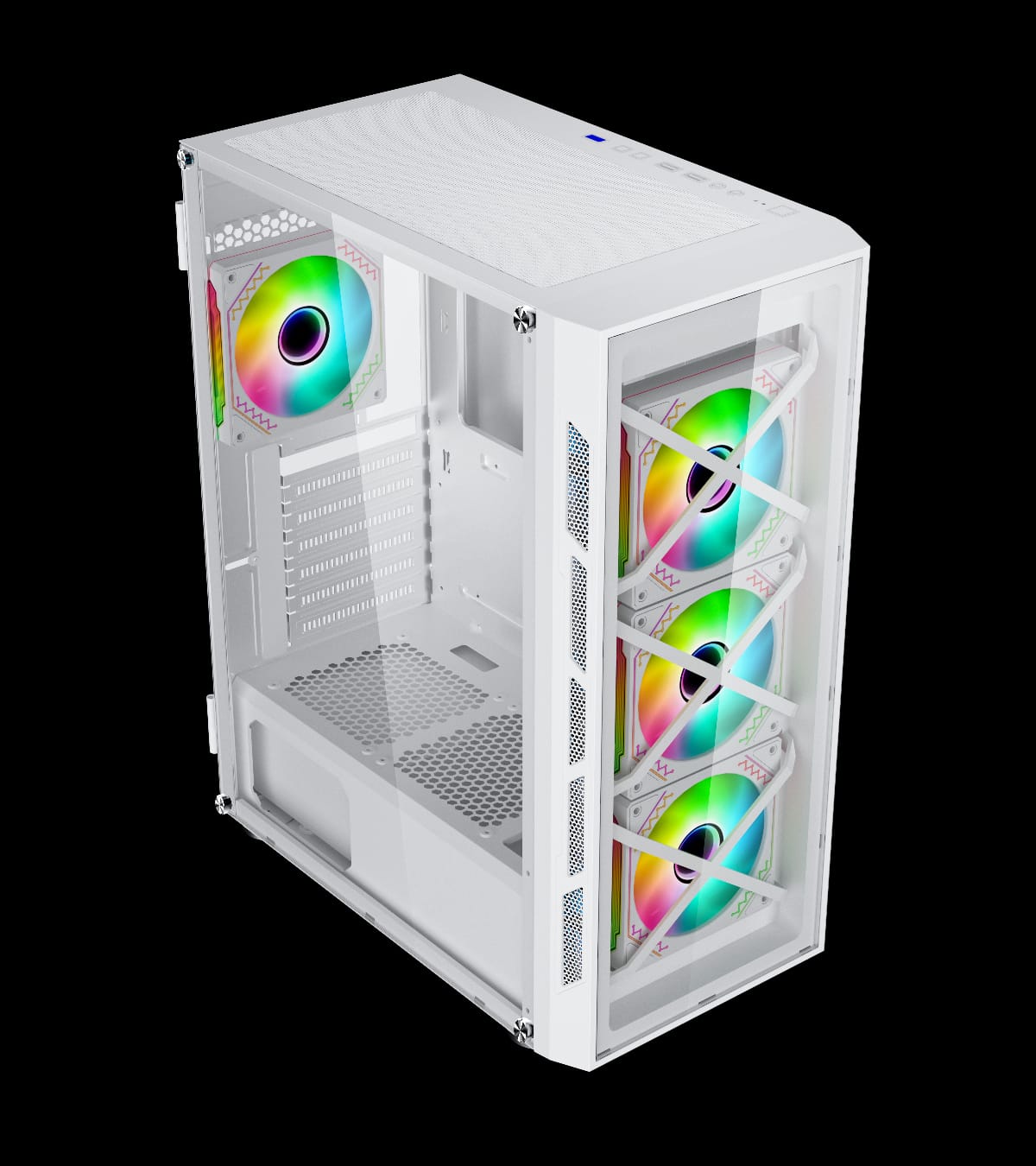

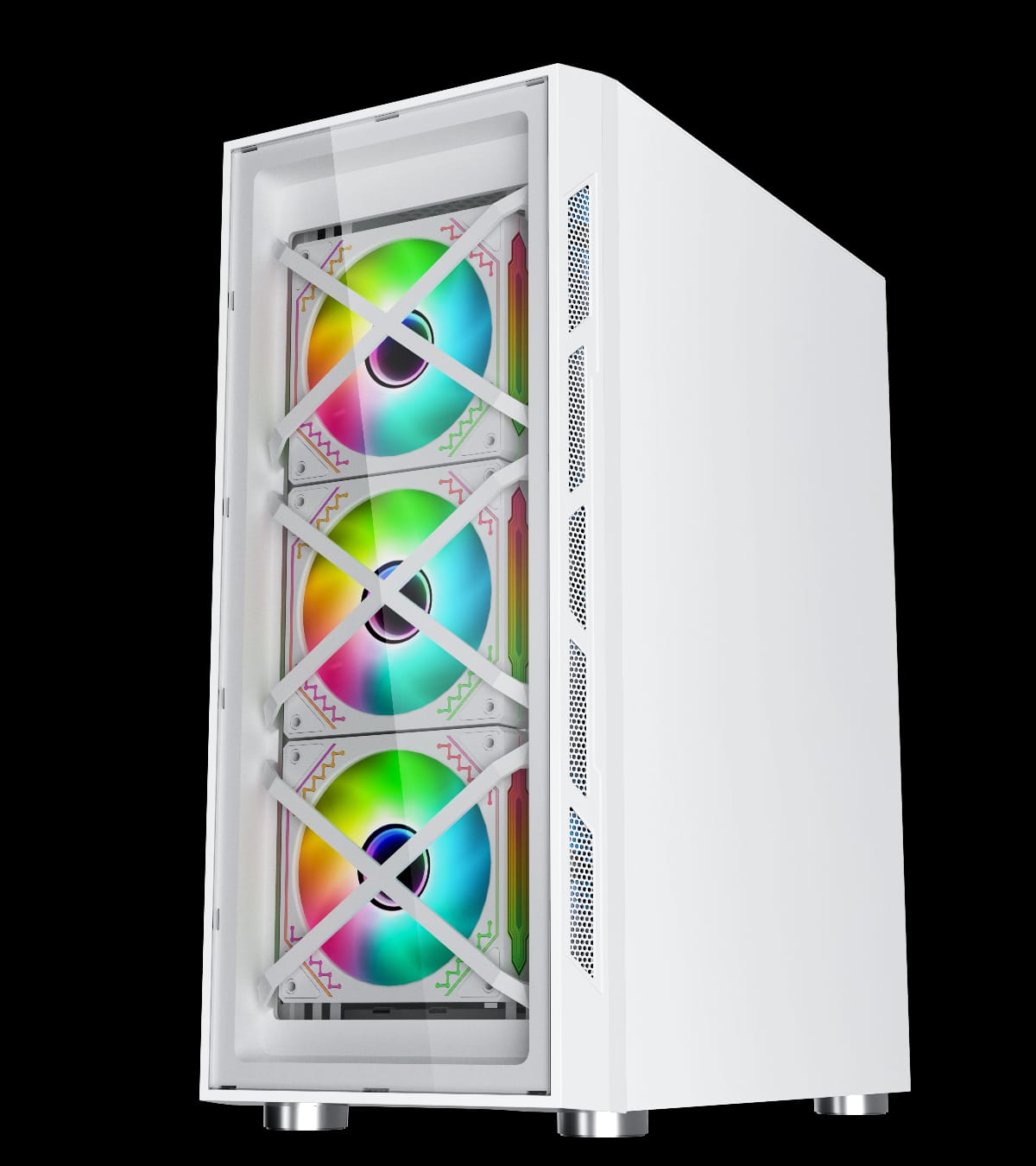

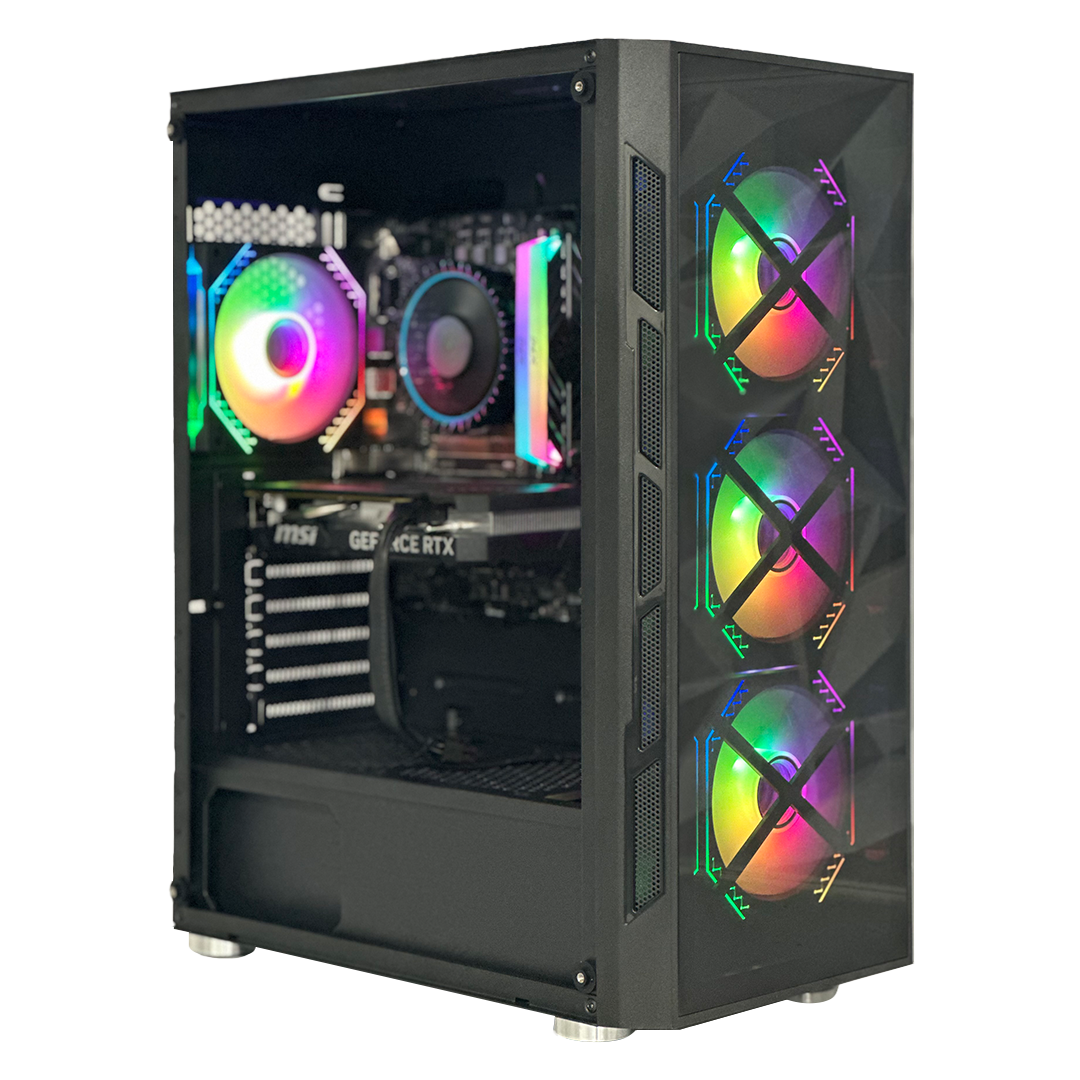

TRIO 4DF UNI
Hardware Thickness
0.5mm SPCC
0.5mm SPCC
Motherboard
E-ATX/ATX/M-ATX/ITX
E-ATX/ATX/M-ATX/ITX
Carton Dimension
530*265*425 mm
530*265*425 mm
Case Size
378*210*480 mm Max
378*210*480 mm Max
Fan Build in
Front 120mm 3 (Diamond Fan)
Rear 120mm *1 (Diamond Fan )
120mm *4 (Uni fan )
VGA Card / Length
320 mm
< 320 mm
SSD / HDD
3.5'' HDD*2+2.5'' SSD * 1
-
Cooling System
Front : 120 mm *3 / 360 mm Water Cooling
Bottom : 120 mm * 2
Rear : 120 mm * 1/ 120 mm Water cooling system
Top : 120 mm * 2 /240 mm Water cooling
Front : 120 mm *3 / 360 mm Water Cooling
Bottom : 120 mm * 2
Rear : 120 mm * 1/ 120 mm Water cooling system
Top : 120 mm * 2 /240 mm Water cooling
I/O Ports
USB 3.0 * 1 USB 2.0 * 2 / HD Audio
HD Audio; USB2.0 *1; USB 3.0*1
Power Supply
Bottom (ATX )
140/160/200mm ATX
Color
Black

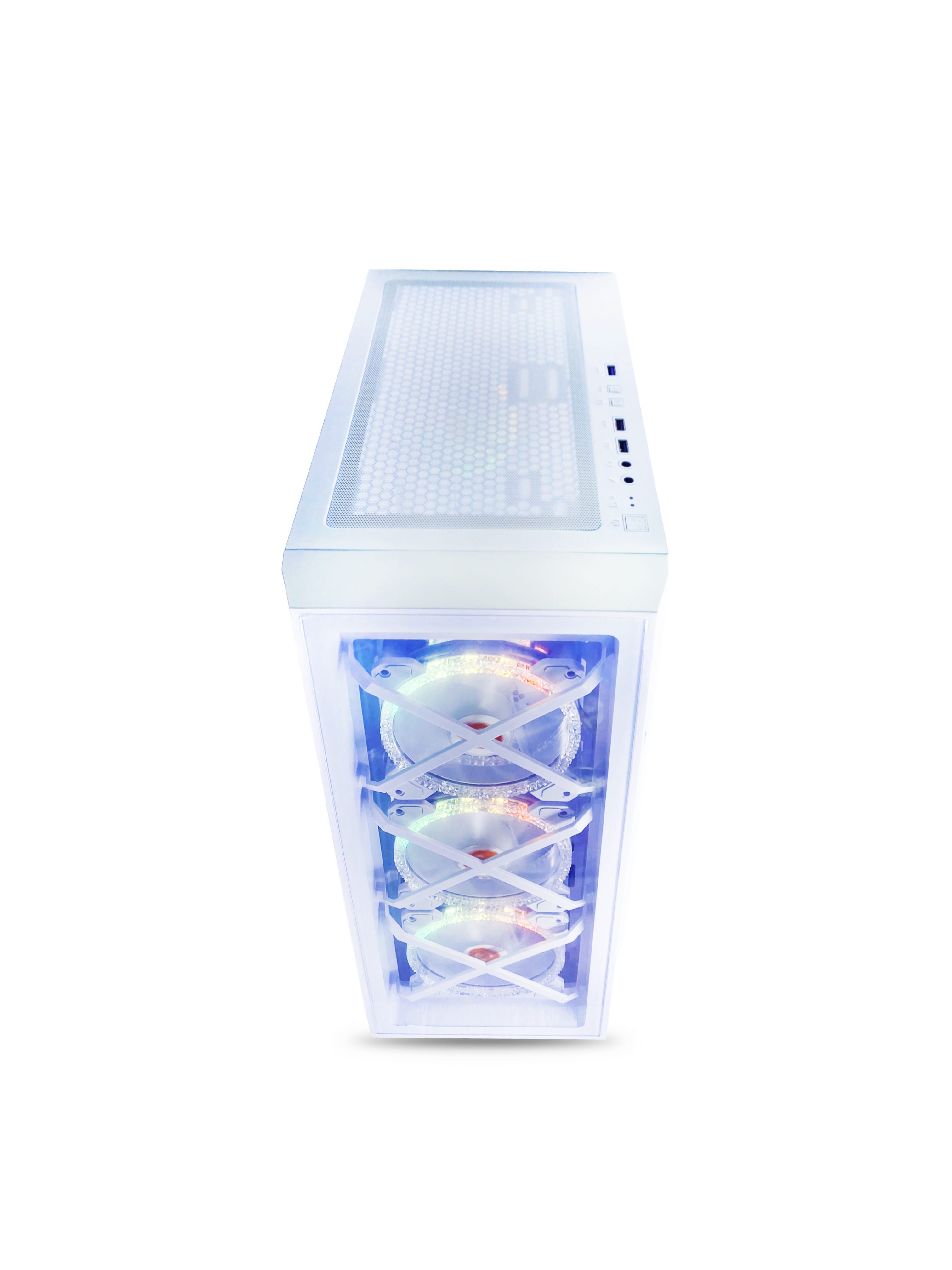

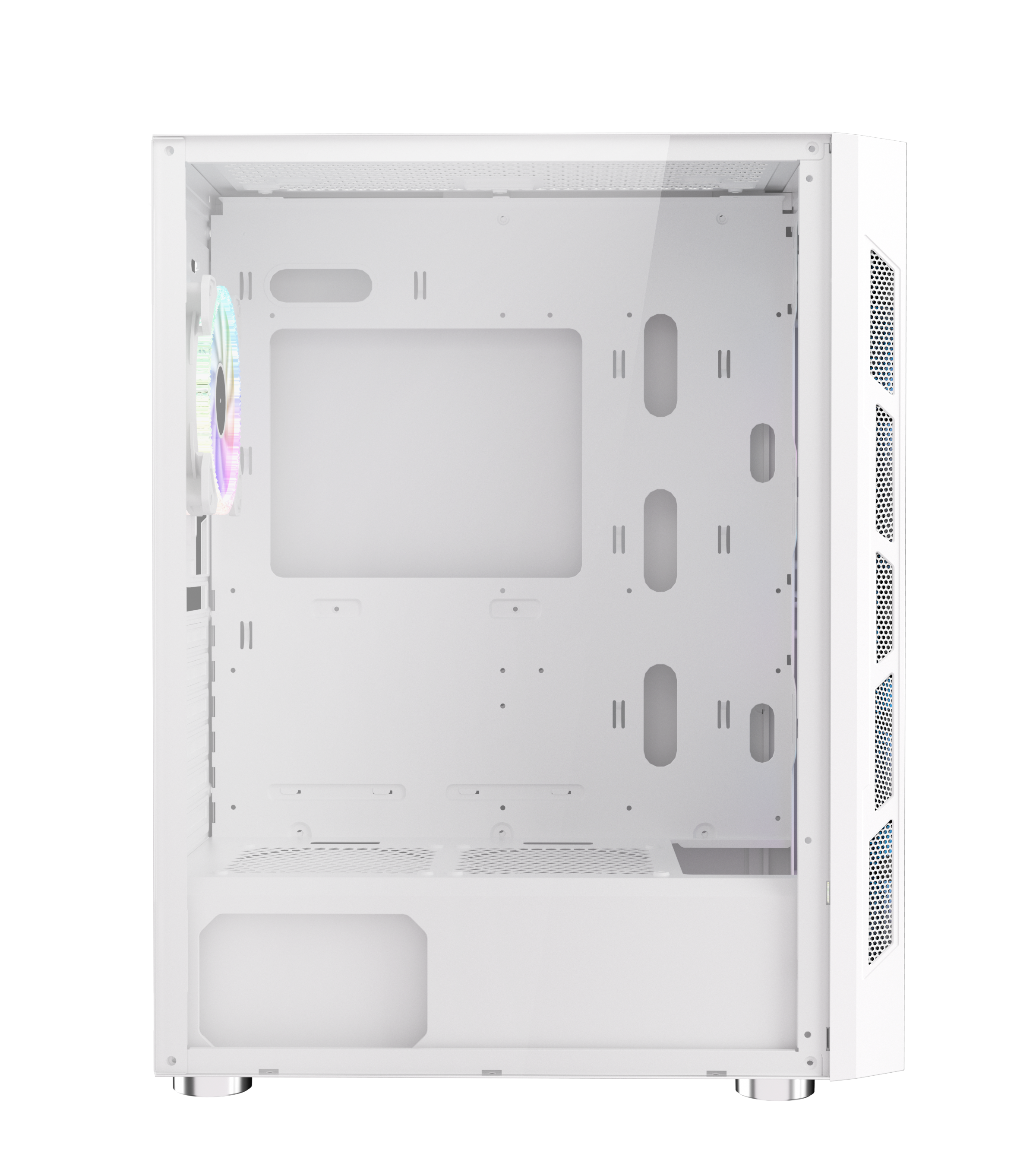

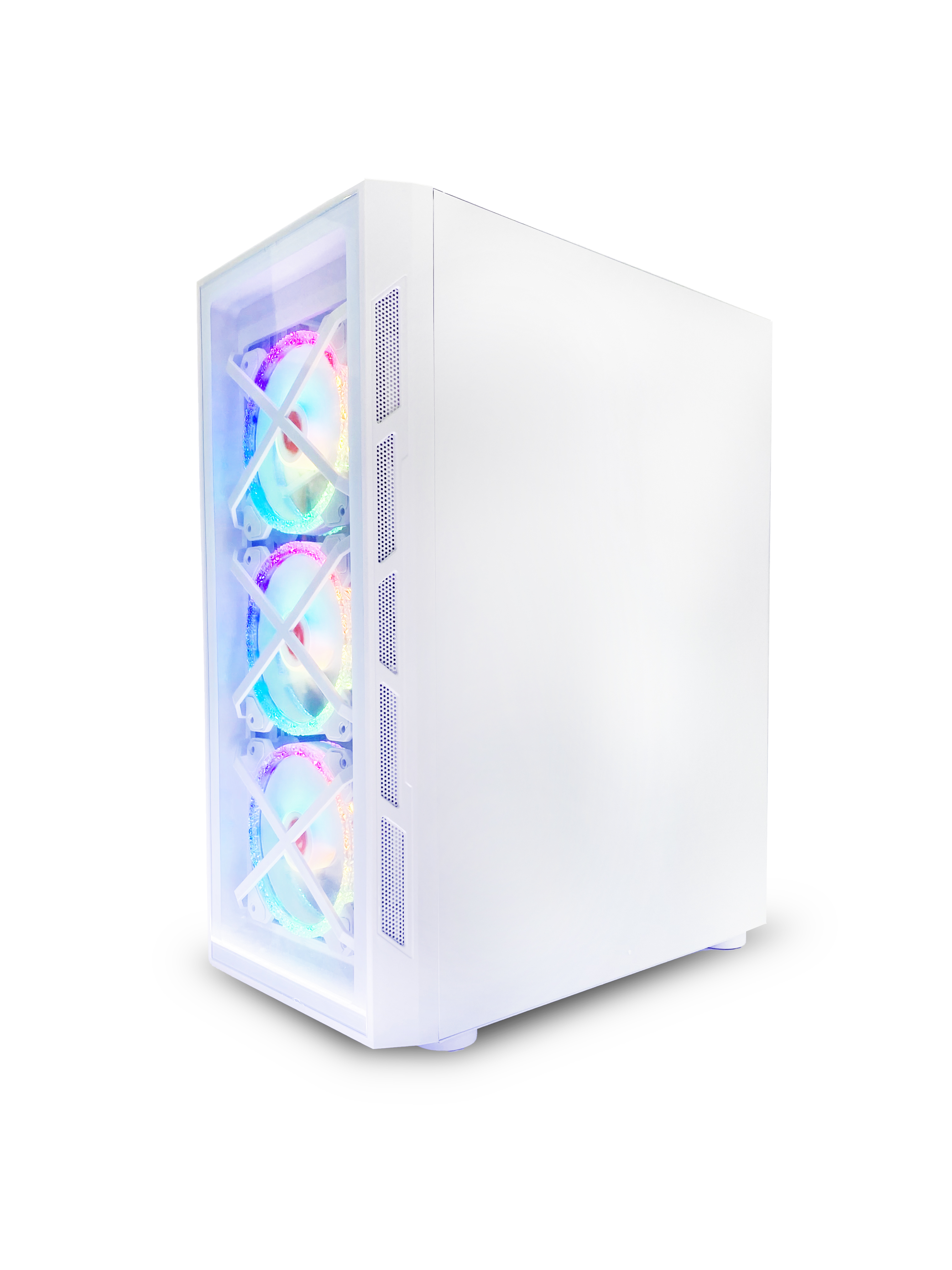

White
Black
White
Expansion Slot
-
Slot 7
EAN Code
745604056076 - BLACK
745604056007 - WHITE
697421574171 - BLACK
697421574164 - WHITE
